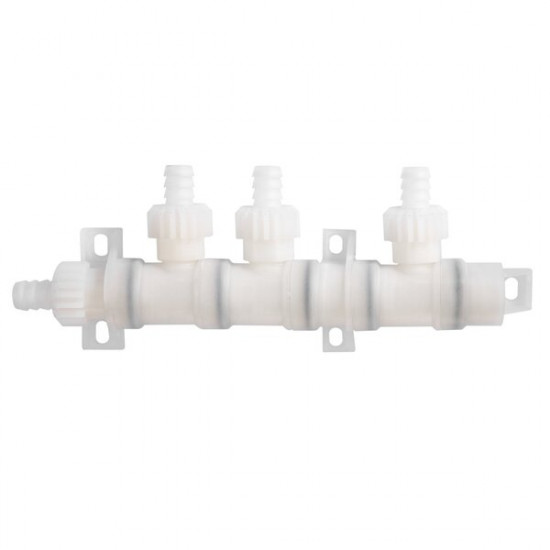

Water supply system X - FIX - triple water distributor

Material: Plastic
Color: White
Shut-off pressure (bar): 3 bar
Connection: 10 mm hose
2nd connection: 13-17 mm
Inner diameter: Ø 10 mm
Outer diameter: Ø 13-17 mm

• Drinking water safe according to KTW/W270
• Frost-proof
• Hot water resistant up to 80 °C
• Pressure resistant

Our triple water distributor with dimensions of 170 x 30 x 100 mm is the ideal solution for your drinking water installation in your motorhome. The distributor is frost-proof and suitable for hot water applications up to 80°C, with a pressure resistance of up to 3 bar. It meets the drinking water requirements according to KTW/W270 and thus guarantees maximum safety and hygiene. The X-Fix system connector enables efficient water flow and is suitable for hoses with an outer diameter of 13-17 mm and an inner diameter of 10 mm. Its flexible application is enhanced by the rotatable connections. The water distributor comes with a nut for securing it, eliminating the need for a hose clamp. It also features a hole for a screw to ensure secure mounting.
