Additional kit for standard AL-Ko bottom-mount kit, part no. 920921

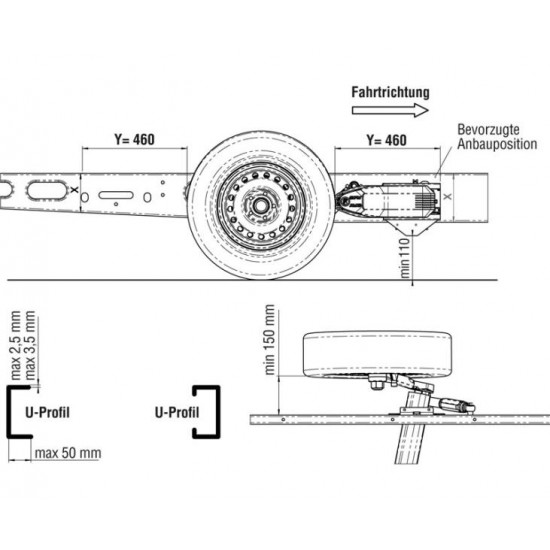

The standard bottom-mount kit can be used with AL-KO and other chassis under the following conditions: The frame height X must be at least 185 mm (measured in the mounting area, either in front of or behind the axle). The frame profile must be a U- or C-profile with a material thickness of 2.5 to 3.5 mm.

Additional kit for frame heights (X) less than 185 mm and greater than 150 mm to compensate for height differences.
Scope of delivery:
Spacer plates with screws.
