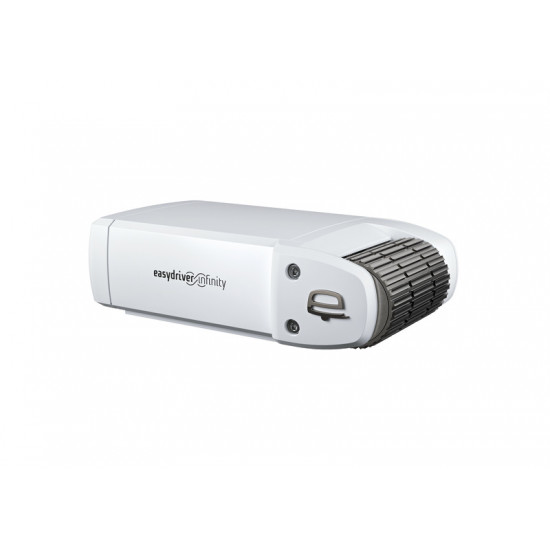

Easydriver Infinity 3.5 Fully Automatic Maneuvering System - For Twin-Axle Trailers

Weight: 58 kg
Current consumption at 12 V: 30 A
Swivel-on/Swiveling: Automatic
Single axle/Tandem axle: Tandem
Max. Caravan weight: 3500 kg
Climbing ability: 12% (at 3500 kg) / 27% (at 1800 kg)
Speed approx.: 19.44 cm/sec.
Maximum current draw: 150 A

• Faster, stronger and smarter
• With 30% more efficient gearbox
• Optimally sealed and protected against water
• Easy assembly in no time
• Also controllable via smartphone with app controller (whether Apple iOS or Android)
• Smooth start and stop thanks to soft start and soft stop
• Best traction for safety on inclines, wet grass, mud and rough terrain
• Electric swiveling (automatic)

The easydriver The Infinity caravan maneuvering system is now faster, stronger, smarter, and features a 30% more efficient gearbox. The system is also optimally sealed and water-resistant. It's quick and easy to install. The EasyDriver Infinity caravan maneuvering system can also be controlled via smartphone app (Apple iOS or Android). It enables smooth acceleration and deceleration thanks to soft start and soft stop. It provides optimal traction for safety on inclines, wet grass, mud, and rough terrain. The Tyrefree concept and the largest swivel range to date allow for free positioning of the roller on the tire. Note (1/4): The following caravans will be delivered with a Knott chassis and easydriver preparation from model year 2023 onwards: Adria: Alpina 663 UK/HT, Alpina 753 UP/HK, Alpina 763 UK, Adora 573 PT, Adora 613 PK, Adora 753 UC; Bürstner: Premio Life; Dethleffs: C'Joy; LMC: Sassino. Unfortunately, it could not be definitively determined whether the preparation, or the opening in the frame longitudinal member, is accessible for the installation of the easydriver on all the above-mentioned models. This should be checked on the vehicle beforehand if possible.

Note (2/4): Since model year 2019, two-axle caravans from the manufacturer Hobby have been prepared for easydriver in the frame longitudinal members in front of and behind the axle.

Note (3/4): The combination of spare wheel carrier and easydriver is not possible.

Note (4/4): The integrated installation of the easydriver with the special mounting kit is not possible on the following Hobby models:

• Model year 2019: 620 CL, 650 KMFe, 650 UFf, 660 WFC, 660 WFU
• Model year 2020: 620 CL, 650 KFU, 650 KMFe, 650 UFf, 660 WFC, 660 WFU
• Model year 2021: 620 CL, 650 KFU, 650 KMFe, 650 UFf, 660 WFC, 660 WFU
• Model year 2022: 620 CL, 650 KFU, 650 KMFe, 650 UFf, 650 UMFe, 660 WFC
• Model year 2023: 620 CL, 650 KFU, 650 KMFe, 650 UFf, 650 UMFe, 660 WFC
