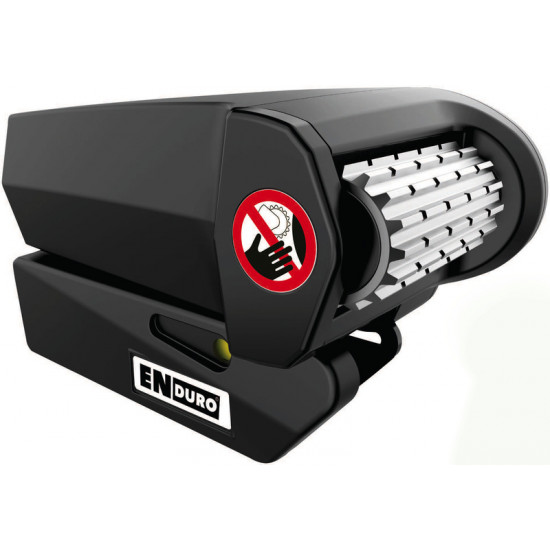

Enduro EM313A fully automatic caravan maneuvering system

Weight: 34 kg
Voltage: 12 V
Current draw at 12 V: 20 A
Swivel: Automatic
Single/Tandem axle: Single axle
Max. caravan weight: 1900 kg
Gradient: 18%
Speed approx.: 12 cm/sec.
Max. current draw: 100 A

• Fully automatic maneuvering aid

Fully automatic maneuvering aid for single and tandem axle caravans and trailers with a maximum permissible weight of up to 1900 kg. The drive rollers are electrically extended and retracted. The robust gear drive, in conjunction with the grippy aluminum rollers, ensures reliable power transmission to the wheels. Fully automatic, parallel extension and retraction of the drive rollers via the electric drive. Permissible total weight on level ground: Single-axle tractor (1900 kg), tandem-axle tractor with 2 engines (1900 kg), tandem-axle tractor with 4 engines (2500 kg). Permissible total weight on an 18% gradient: Single-axle tractor (1900 kg), tandem-axle tractor with 2 engines (1900 kg), tandem-axle tractor with 4 engines (2500 kg).
