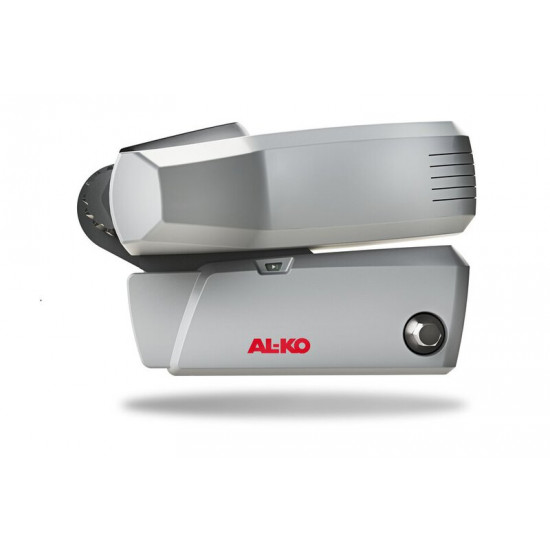

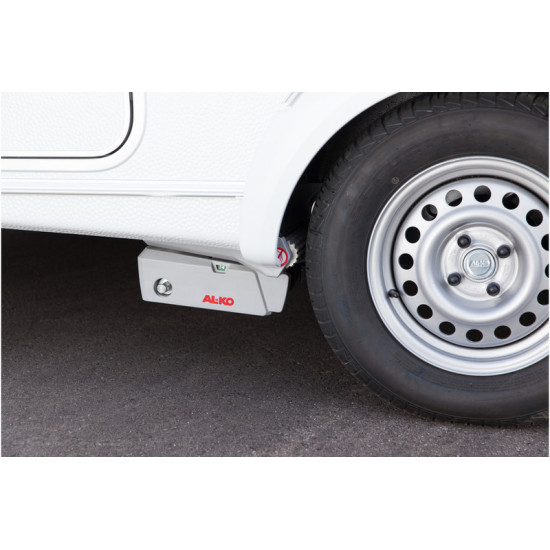

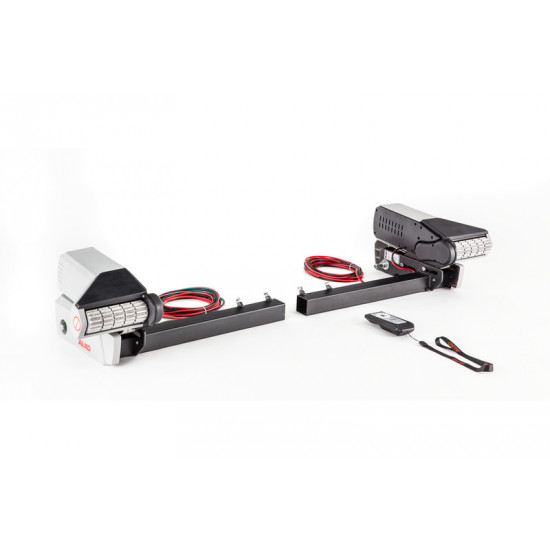

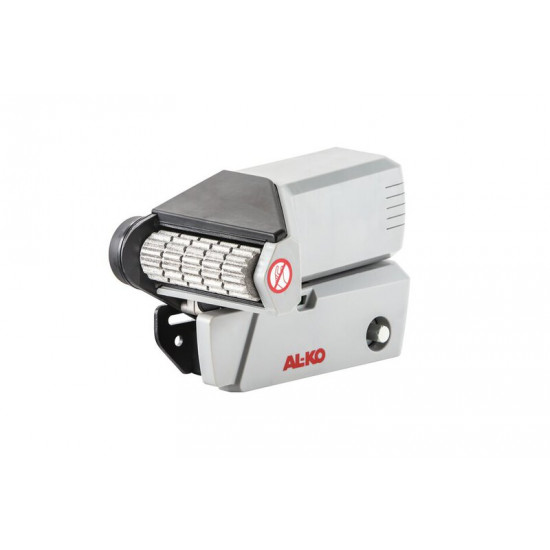

Caravan maneuvering aid Ranger S21 - single axle

Weight: 37 kg
Current consumption at 12 V: 20 A
Swivel-on/off: Semi-automatic
Single axle/Tandem axle: Single axle
Max. caravan weight: 1800 kg
Gradient capability: 18%
Speed approx.: 9 cm/sec.
Max. current consumption: 100 A

• Optimal ground clearance

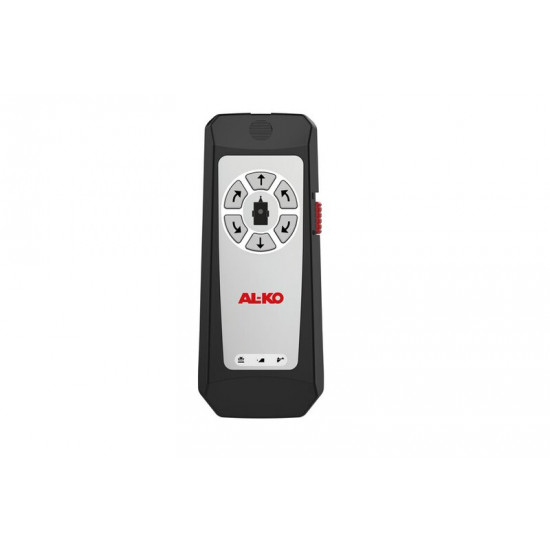

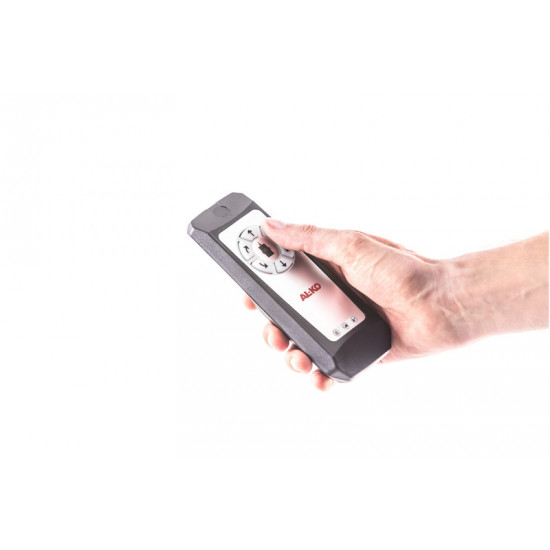

• Remote control with lanyard
• Soft start and soft stop for precise and smooth operation
• LED display on control box and remote control
• Fits almost any caravan up to 1.8 tons

The new AL-KO maneuvering system controls and maneuvers your caravan (up to 1.8 t) exactly where you want it. Even in the tightest spaces and on steep terrain. Millimeter-precise and completely effortless thanks to the incredibly easy-to-use remote control. Even rotating the caravan 360 degrees around its own axis is possible.

Further specifications:

• Remote control transmission frequency: 888 MHz
• Minimum caravan width: 1800 mm
• Maximum caravan width: 2500 mm
• Maximum tire width: 205 mm
• Power source: LiFe 12 V, 20 Ah / Lead-acid: 12 V, 70 Ah (min.)
