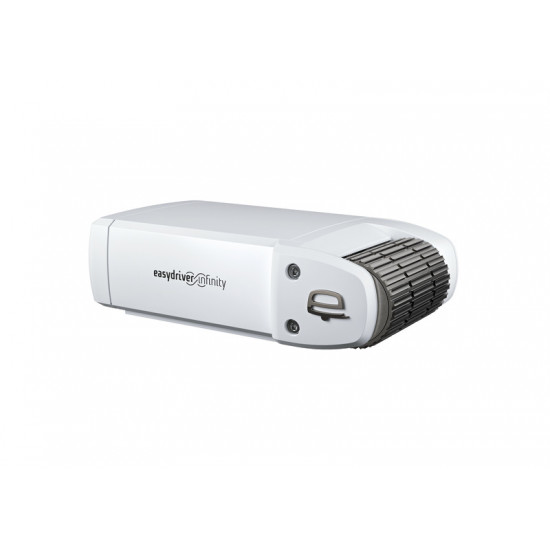

Easydriver Infinity 2.5 Fully Automatic Maneuvering System - For Single-Axle Tractors

Weight: 29 kg
Voltage in V: 12 V
Current consumption at 12 V: 18 A
Swivel on/off: Automatic
Single axle/Tandem axle: Single axle
Max. Caravan weight: 2500 kg
Climbing ability: 15% (at 2500 kg) / 33% (at 1200 kg)

• Faster, stronger and smarter
• With 30% more efficient gearbox
• Optimally sealed and protected against water
• Easy installation in no time at all

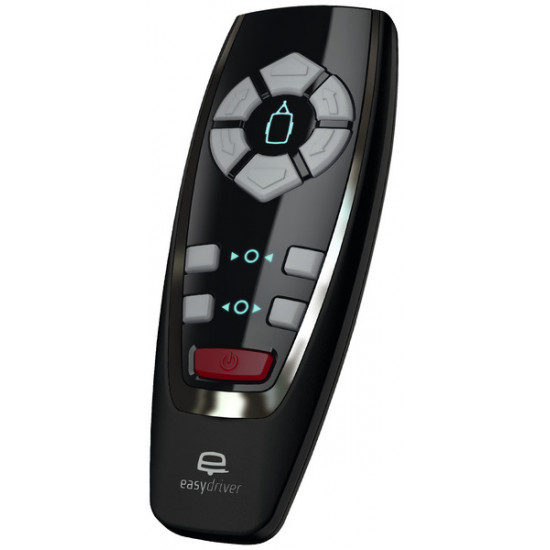

• Also controllable via smartphone with app controller (whether Apple iOS or Android)
• Smooth start and stop thanks to soft start and soft stop
• Best traction for safety on inclines, wet grass, mud and rough terrain
• Electric swiveling (automatic)

The easydriver infinity maneuvering aid for caravans is now faster, stronger, smarter and with a 30% more efficient gearbox. Furthermore, the maneuvering system is optimally sealed and protected from water. It can be easily installed in no time. The easydriver infinity caravan maneuvering aid can also be controlled via smartphone app (Apple iOS or Android). It enables smooth starting and stopping thanks to soft start and soft stop. It provides optimal traction for safety on inclines, wet grass, mud, and rough terrain. The Tyrefree concept and the largest swivel range to date allow for free positioning of the roller on the tire. Note (1/3): The following caravans will be delivered with a Knott chassis and easydriver preparation from model year 2023 onwards: Adria: Alpina 663 UK/HT, Alpina 753 UP/HK, Alpina 763 UK, Adora 573 PT, Adora 613 PK, Adora 753 UC Bürstner: Premio Life Dethleffs: C'Joy LMC: Sassino Unfortunately, it could not be definitively determined whether the preparation, or the opening in the frame longitudinal member, is accessible for the installation of the easydriver on all the above-mentioned models. This should be checked on the vehicle beforehand if possible.

Note (2/3): Since October 2016, single-axle caravans from the manufacturer Hobby have been equipped with a provision for the easydriver infinity and pro in the frame longitudinal member in front of the axle.

Unfortunately, it could not be definitively determined whether the provision, or the opening in the frame longitudinal member, is accessible for mounting the easydriver on all the models mentioned above. This should be checked on the vehicle beforehand if possible.

Note (3/3): The integrated installation of the easydriver with the special mounting kit is not possible on the following Hobby models:

• Model year 2017: 390 SF, 400 SFe, 440 SF, 455 UF, 460 UFe, 540 WLU, 560 WFU, 560 WLU
• Model year 2018: 390 SF, 400 SFe, 440 SF, 455 UF, 460 UFe, 540 WLU, 560 WFU, 560 WLU
• Model year 2019: 390 SF, 400 SFe, 440 SF, 455 UF, 460 UFe, 540 WLU, 560 WFU, 560 WLU
• Model year 2020: 390 SF, 400 SFe, 440 SF, 455 UF, 460 UFe, 540 WLU, 560 FC, 560 WFU, 560 WLU
• Model year 2021: 390 SF, 400 SFe, 440 SF, 455 UF, 460 UFe, 540 WLU, 560 CFe, 560 FC, 560 WLU
• Model year 2022: BEACHY 360, BEACHY 420, 390 SF, 400 SFe, 440 SF, 455 UF, 460 UFe, 540 WLU, 560 CFe, 560 FC, 560 WLU
• Model year 2023: BEACHY Air, BEACHY 360, BEACHY 420, 390 SF, 400 Sfe, 440 SF, 455 UF, 460 Ufe, 540 WLU, 560 CFe, 560 FC, 560 WLU
