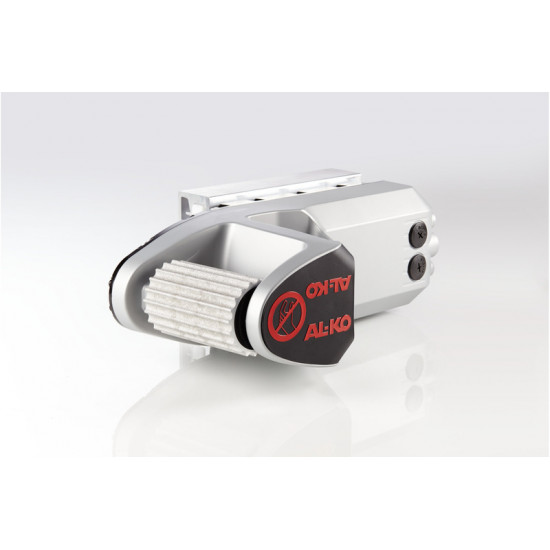

Mammut shunting system - tandem axle TM400

Weight: 67 kg
Current consumption at 12 V: 30 A
Swivel-on/Swiveling: Automatic
Single axle/Tandem axle: Tandem
Max. Caravan weight: 3000 kg
Gradient capability: 15% (at 3000 kg)
Maximum current draw: 120 A

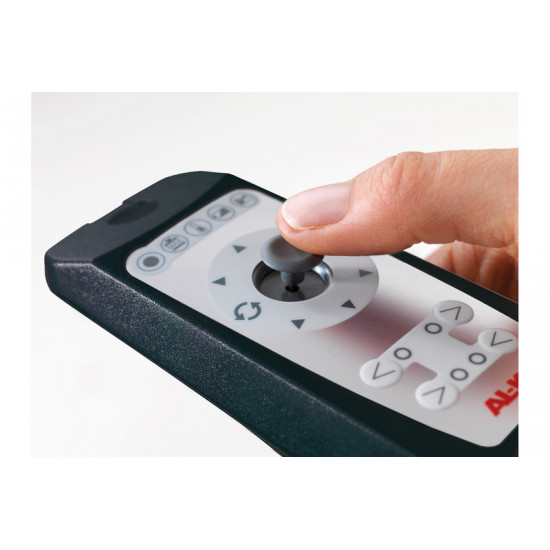

• One-hand operation via joystick
• Infinitely variable steering and speed control
• Quick installation on new AL-KO frames (drill holes pre-drilled)
• Overcomes obstacles up to 4 cm high

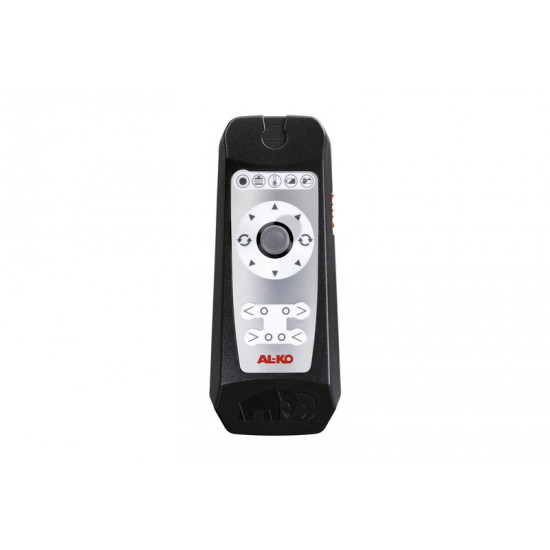

• Smooth maneuvering with radio remote control
• Instant stop on slopes as soon as the joystick is released
• No TÜV registration required, ABE (General Operating Permit) available
• Maximum standby current: 5 mA
• 5-year warranty according to AL-KO warranty conditions
• Activation of the overrun device on the radio remote control

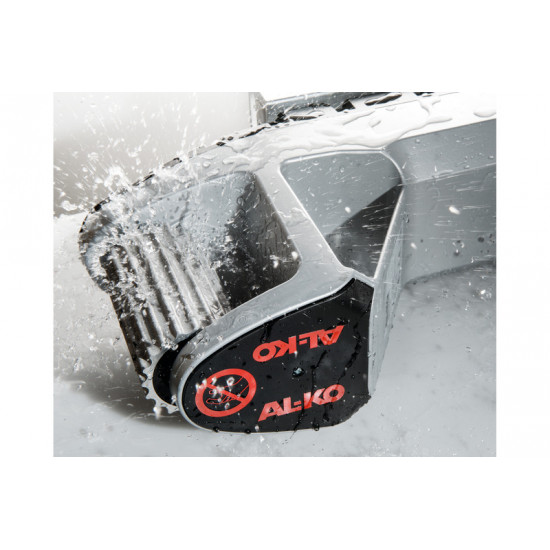

With the multi-award-winning AL-KO MAMMUT maneuvering system, you can easily move and control your caravan or trailer. And precise, even alone and in remote terrain. Maneuvering in the tightest spaces is just as easy with the MAMMUT maneuvering system as overcoming obstacles up to 4 cm high or inclines of up to 28 percent. The MAMMUT maneuvering system accelerates smoothly and completely without jerking or interruptions. The control electronics are perfectly integrated into the robust aluminum drives and thus protected against damage and moisture (IP65). Thanks to an optimized housing, heat dissipation is even better compared to the previous model. With the extended duty cycle, longer maneuvering is easily possible even at high temperatures and loads. Further specifications: Installation in the direction of travel: In front of and behind the axle. Chassis height: > 184 mm. Number of motors: 4. Soft start/stop: Yes. Maximum ground clearance: M-Chassis without step in front of the axle: In front of the axle (top mounting) and behind the axle (bottom mounting). picture-in-picture; web-share" allowfullscreen>
