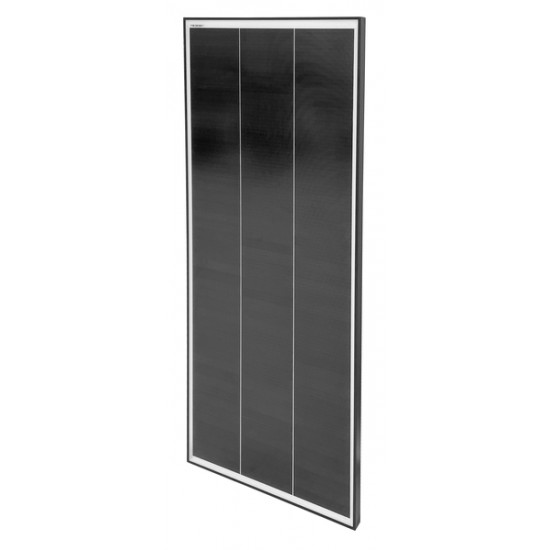

Solar module CBS-120 Shingle - 120 W

Width: 540 mm
Depth: 1165 mm
Weight: 7 kg
Color: Black
Height: 35/55 mm
Cable length: 6 m
Power: 120 W
Cable: Ø 2.5 mm
Number of modules: 1
Efficiency: 22.7 %
Nominal voltage (Vmp): 20.3 V
Nominal current (Imp): 5.92 A
Short-circuit current (Isc): 6.28 A
Open-circuit voltage (Voc): 24 V

• Shingle technology for more power in the same area
• Less power loss in partial shading
• 6 m cable pre-installed
• 10% higher area efficiency compared to Standard solar cells
• Robust aluminum frames

CBS-120 solar module with a power output of 120 W and state-of-the-art shingle technology. In this technology, the individual cells overlap (similar to roof shingles).
