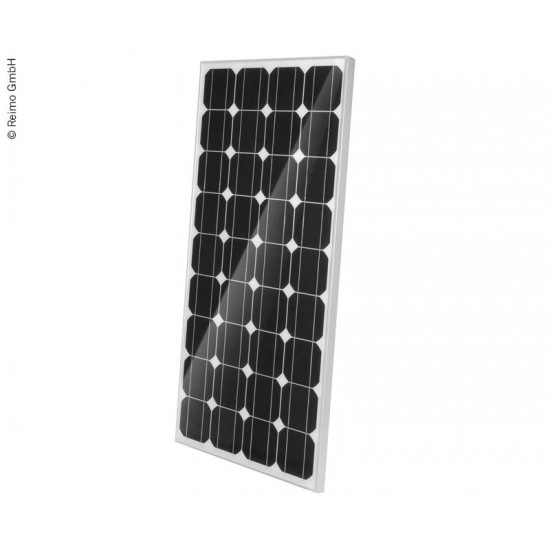

Solar module CB 120 - 12V/120W, 1450 x 550 x 35mm with solid aluminum frame

Width: 545 mm
Weight: 9 kg
Power: 120 W
Cable: Ø 1000 mm
Efficiency: 20 %
Nominal voltage (Vmp): 18.9 V
Nominal current (Imp): 6.35 A
Short-circuit current (Isc): 6.87 A
Open-circuit voltage (Voc): 23.49 V

• High-performance solar panel with solid aluminum frame
• Monocrystalline cells
• Tempered glass
• Protected connection with 1 m cable, 2 x 2.5 mm²²
• 25-year performance guarantee

The high-performance solar module CB 120 with 36 monocrystalline cells, Housed in a solid aluminum frame and tempered glass, this solar panel offers maximum efficiency for campers and camping. Integrated bypass diodes ensure efficient power output, especially in poor lighting conditions and partial shading, bypassing the high cell resistance for optimal charging. The 25-year manufacturer's performance guarantee ensures 80% of the panel's output even after 25 years.

Technical Data:
Solar module: 12V, 120W solar panel
Integrated bypass diodes for optimal performance
Monocrystalline high-performance cells: 36
Efficiency: 20%
Short-circuit current (Isc): 6.87A
Open-circuit voltage: 23.49V
Nominal voltage: 18.9V
Nominal current: 6.35A
