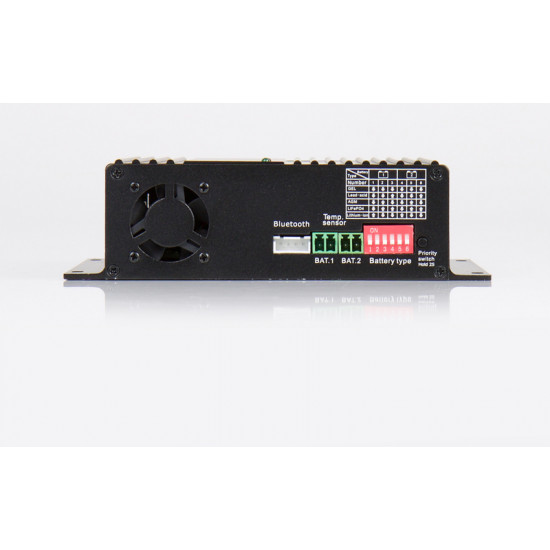

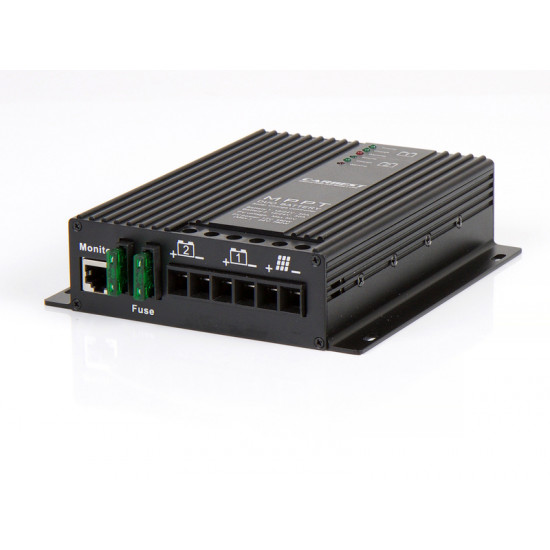

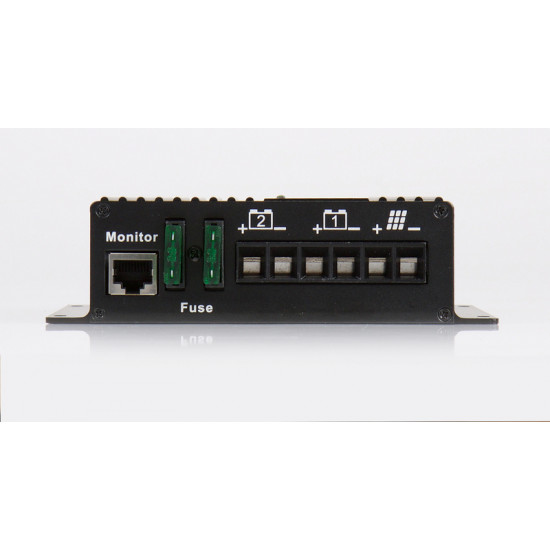

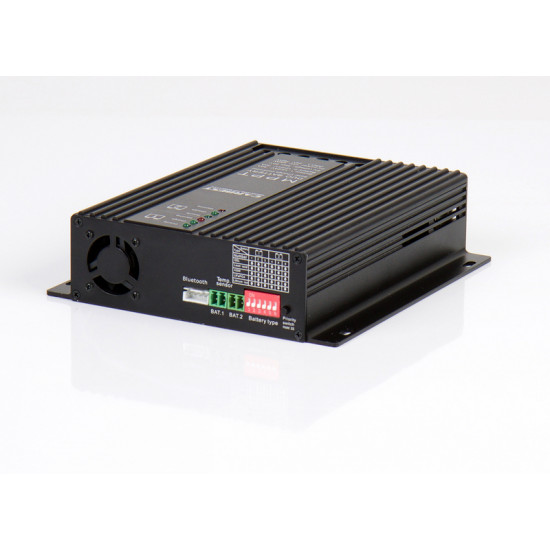

MPPT solar charge controller DualController 30 A

Width: 147 mm
Weight: 780 g
Material: Aluminum
Height: 43 mm
Length: 155 mm
Voltage: 12/24 V
Outputs: 2
Maximum solar module power: 780 Wp
Maximum solar module voltage/current: 50 V
Maximum charging current: 30 A
Battery type: Lead-acid / AGM / Gel / Lithium

• Two battery outputs
• Batteries with different voltages (12 V / 24 V) can be connected together
• Different types of batteries can be connected together
• Batteries are charged sequentially (priority set by user)
• Adjustable battery type: Lead-acid, AGM, GEL, LiFePO4
• Bluetooth-enabled in conjunction with the Bluetooth module 851007
• ECE R10 approved

12/24 V solar charge controller with MPPT technology and a maximum charging current of 30 A. Batteries with different voltages or different types can be connected together. Charging takes place sequentially with the maximum possible charging current. The user can set the priority of the battery to be charged. The solar controller automatically detects 12/24 V and, in combination with the optional Bluetooth module 851007, all data can be conveniently accessed via a free app on your smartphone.

Further specifications:

• Max. solar module power at 12 V: 390 W
• Max. Solar module power output at 24 V: 780 W
