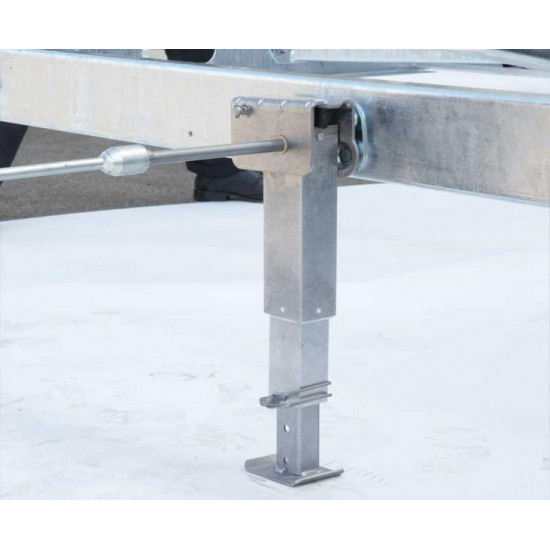

AL-KO ClickFix leveling jacks - mechanical

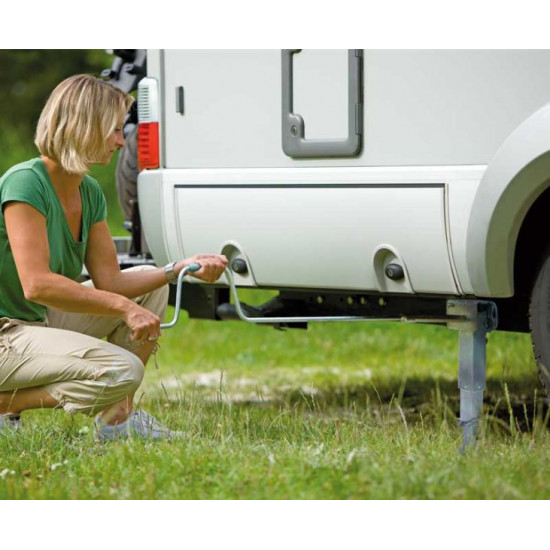

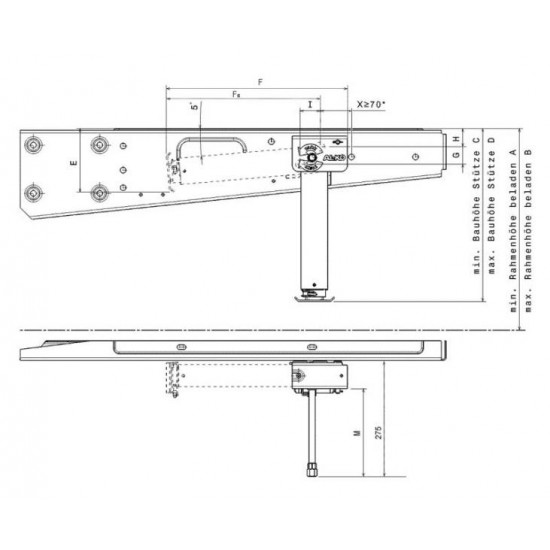

Ensures the vehicle stands securely. For use on motorhomes with an AL-KO frame or frame extension. From model year 8/95 onwards, all mounting points are pre-drilled on the frame. For older vehicles, the holes must be drilled by the user. Robust lifting support for a firm and secure stance. Operation is via a crank handle; the lifting support automatically tensions itself when raised. Free-swinging mechanism: If the motorhome is moved despite the support being extended, it automatically tilts forward and backward. For frame height A: loaded min. 400 mm, loaded max. 490 mm; overall height B min. 370 mm, overall height B max. 510 mm; required installation space L 481 mm; drive shaft length E 200 mm. Hand crank not included (hand crank 91327 or 91332).
