Dynavin DVN 6901 LITE Blind Spot Camera System

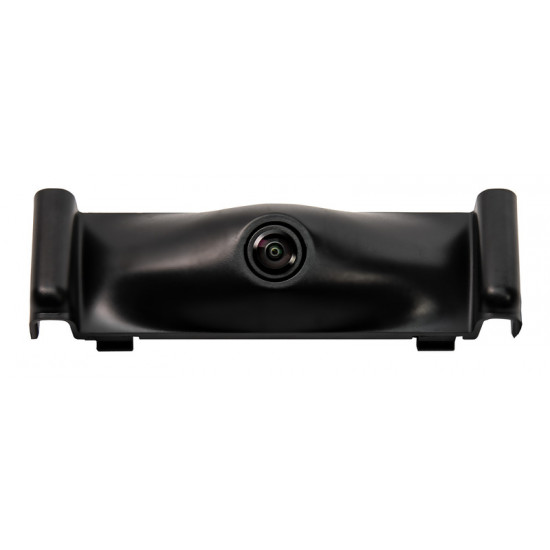

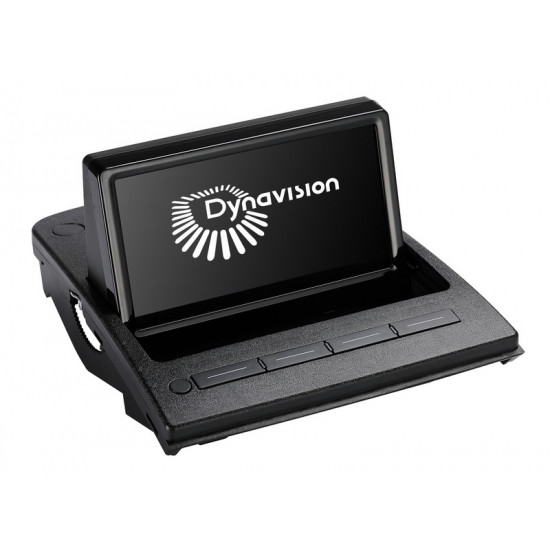

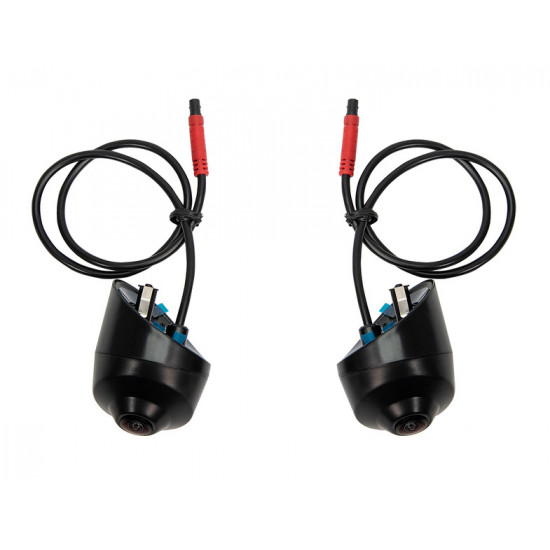

• The set consists of a front camera, 2 side cameras (for mounting on the exterior mirrors) and a foldable monitor (DVN 6901 MO)
• The adjacent lane on both sides and overtaking vehicles directly next to your own vehicle become visible
• When maneuvering, the front wheel and the road all around are visible
• No image distortion thanks to software correction
• Installation without calibration (however, installation by a specialist workshop is recommended)
• Reversing camera required (cameras can be found in our catalog or in our online shop)
• Also suitable for Fiat Ducato 8 (from 09/2021)

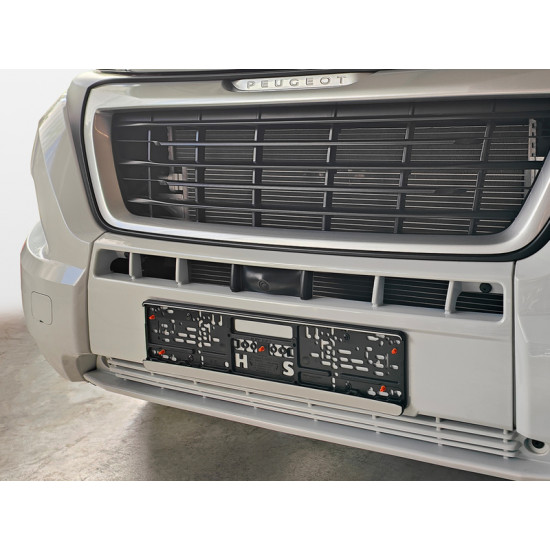

With the DVN 6901 Lite blind spot camera system for Fiat Ducato, you eliminate the blind spot to the front and to the sides Sides. In combination with a Dynavision reversing camera (sold separately), you maintain a clear view around your Fiat Ducato. Consisting of: 1 fold-out monitor, 1 front camera, and 2 side cameras. Automatic activation of the side cameras via the turn signals. Installation: The system is easy to install and requires no calibration. However, we recommend having the system professionally installed. Nationwide installation service available. Note: Only suitable for panel vans and semi-integrated motorhomes. For fully integrated models, item no. 47822.

Technical data for front and side cameras:

• Activation by activating the turn signal or engaging reverse gear.
• Resolution: 720 x 480 pixels
• Image mode: NTSC
• CMOS sensor: 1/4 CMOS AR0140 from ON-Semi
• ISP: GW4 from GEO-Semi
• Lens FOV: Horizontal 210°, vertical 140°
• Protection class: IP67 (waterproof)
