WiFive router

• 5G, 4G Cat19, 3G connectivity
• Up to 3,400 Mbps surfing speed (under optimal conditions (network reception and open terrain))
• For up to 150 devices
• Dual and eSIM router with web UI user interface

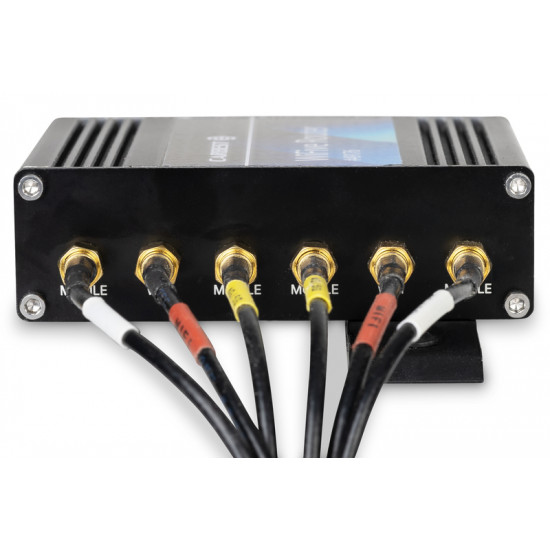

• Features: 4x 5G/4G ports (SMA), 2x Wi-Fi ports (RP-SMA), 1x LAN, 1x WAN, 2x integrated SIM card slots, 1x eSIM, 1x LED status indicator for power, mobile data and Wi-Fi

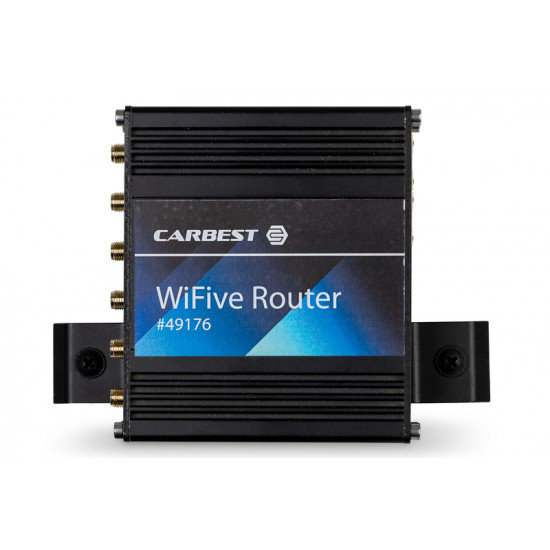

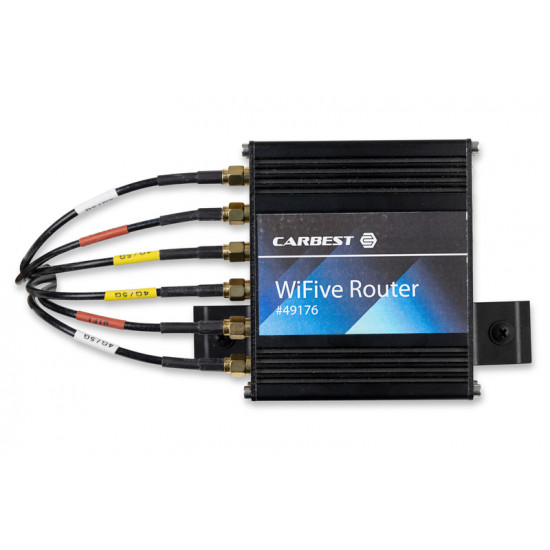

The Carbest 5G WiFive router offers state-of-the-art technology for stable and

ultra-fast surfing – with download speeds of up to 3,400 Mbps and connectivity for up to 150 devices simultaneously. Thanks to the 4 MIMO antenna connectors for 5G reception, 2 WiFi ports for WLAN reception, LAN and WAN ports, and 2 SIM slots + eSIM, you are always flexible – whether with a traditional SIM card or a digital connection. The LED status indicator provides information about power supply, mobile data, and WLAN activity at all times. Installation is particularly easy: unscrew the housing, insert the SIM card(s), scan the QR code with your smartphone, and follow the quick installation guide. Configure your personal settings via the web interface (WebUI). Thanks to the included wall mount, the router can be securely screwed into place. Suitable antenna: Part no. 49159.

Further specifications:

• Dimensions: W100 x H30 x D93.7 mm
• Weight 319 g
• SIM slot 2 x Micro SIM slots for mobile cards
• Mobile speed
• 5G Sub-6GHz SA/NSA: 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G: 42 Mbps DL, 5.76 Mbps UL SIM card replacement: SIM card is inserted inside the housing APN detection: Automatic detection Operation: WebUI Wi-Fi: Wi-Fi 5 Wi-Fi connection: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps, dual-band, MU-MIMO, 802.11r Fast Transition, Access Point (AP), Station (STA) Wi-Fi repeating: Wireless Mesh network (802.11s), Fast Roaming (802.11r), Relayed, BSS transition management (802.11v), Radio Resource Metering (802.11k), Captive Portal Wi-Fi speed: Transmission rate up to 867 Mbit/s
• Guest Wi-Fi Configurable
• Automatic Mode Selectable
• Data Saving Mode Enableable
• Secure Connections Support for VPN, SSH, RMS Connections
• Regular Updates
• Voltage 9–30 V
