Caravanman Compact 3 - Graphite Single

Packed dimensions: Depth: 56 cm
Packed dimensions: Width: 59 cm
Packed dimensions: Height: 23 cm
Weight: 5.46 kg
Color: Anthracite

• Fully automatic antenna with Bluetooth function for operation via smartphone, tablet, or control unit
• Satellite selection & firmware updates directly via mobile phone
• Free app for iOS and Android devices

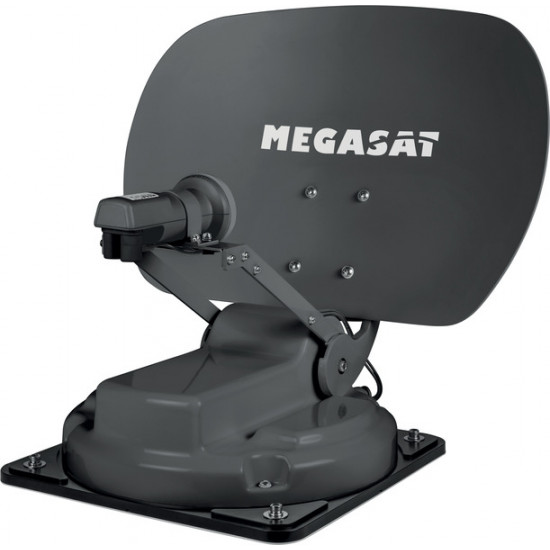

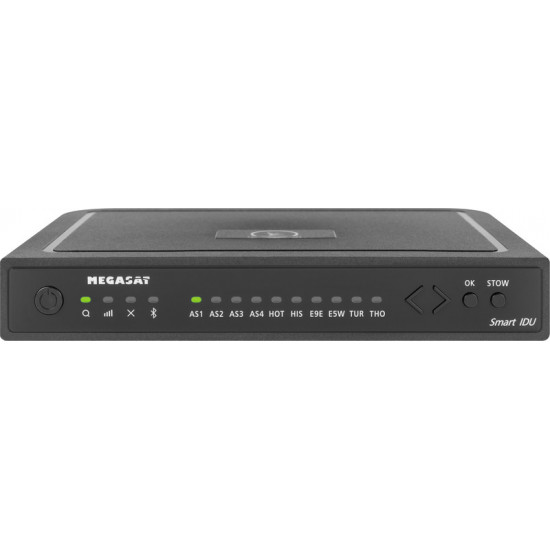

The Caravanman Kompakt 3 is the ideal antenna for caravans, campervans, or motorhomes with limited mounting space. Despite its small reflector, it offers strong reception even in the peripheral regions of Europe. Very compact design with high reception performance and 10 pre-programmed satellites. Satellite selection can be made either on the control unit or via the app on your mobile device. The antenna is connected to the control unit with a single coaxial cable. Technical Specifications: LNB Type: Universal LNB Frequency Band: Ku-Band Input Frequency Range: 10.7 GHz - 12.75 GHz Polarization: Vertical/Horizontal Signal Gain: 33 dBi @ 12.7 GHz Minimum EIRP (Coverage): 49 dBW Elevation: 15° - 62° Azimuth: 360°, 2-Axis DC Motor Control Unit with Bluetooth Module Temperature Range: -25°C - +70°C Power Supply: DC 12 Volt

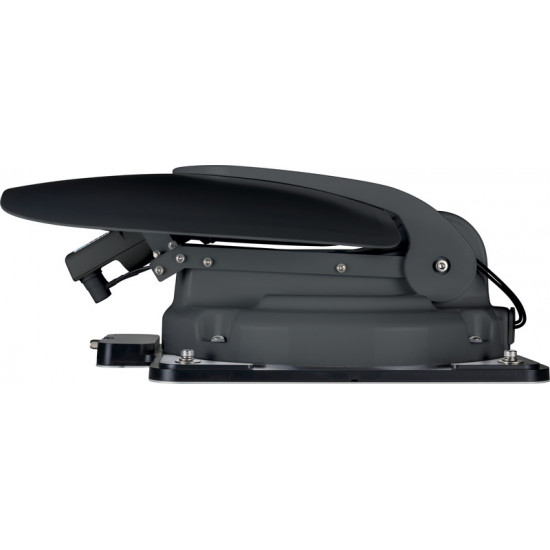

Dimensions folded: W 46 x H 17 cm
