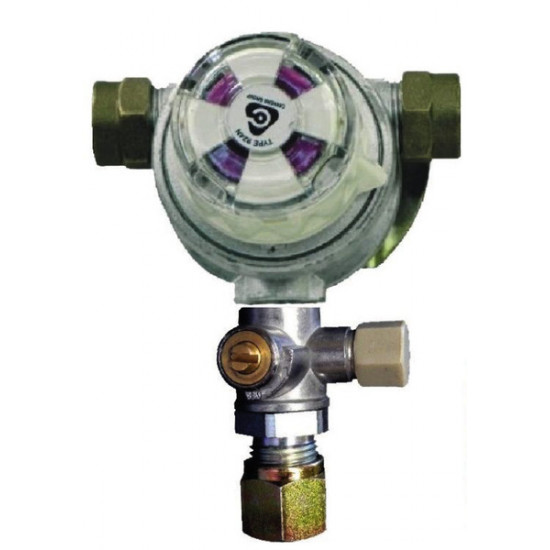

Multimatic dual-cylinder system - 30 mbar - With test valve - 8 mm SRV

Hose length: 45 cm
Gas pressure: 30 mbar
Connection: 8 mm SRV
Regulator capacity in kg per h: 1.5 kg/h

• Stable outlet pressure
• Maximum flow rate
• Compact design
• Easy to install according to EN 12864
• With test valve
• Automatic cylinder changeover occurs without interruption of operation
• 2 high-pressure hoses enable universal connection to 3, 5, 11 and 33 kg cylinders

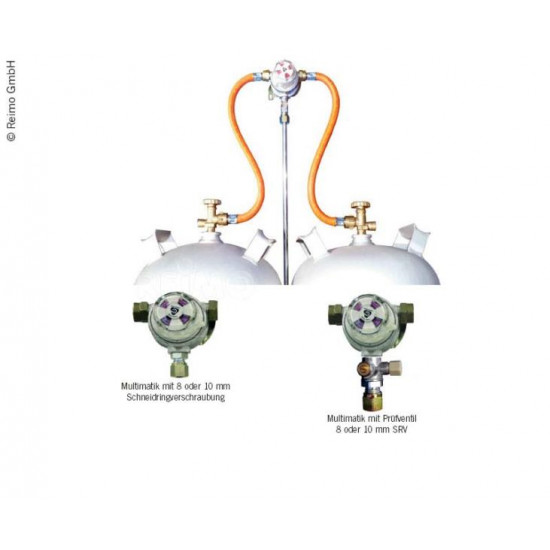

2-cylinder changeover system with test valve for connecting 2 gas cylinders. The system detects the fill level in the cylinder and automatically switches to the second gas cylinder when the first cylinder is empty. With integrated gas pressure regulator and overpressure safety reading technology in stationary operation. Due to its compact design, only an area of 6 x 8 cm is required for installation.
