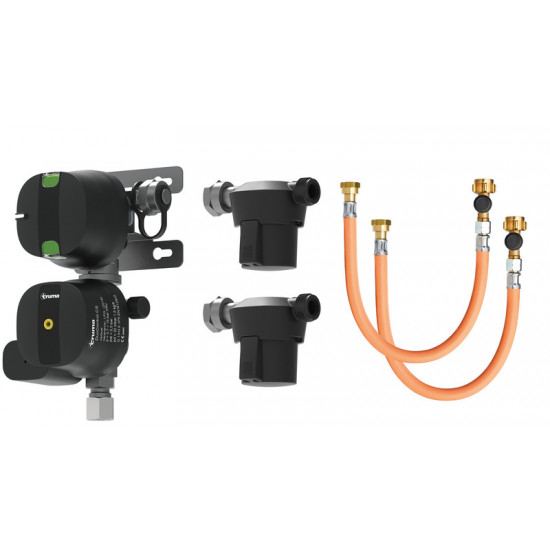

Truma DuoControl CS vertical set

Width: 95 mm
Weight: 1.2 kg
Height: 184 mm
Length: 103 mm
Shut-off pressure (bar): 16 bar
Gas pressure: 30 mbar
Gas mixture: Butane/Propane
Regulator capacity in kg per h: 1.5 kg/h
Regulator inlet: M20 x 1.5 (G.13) external thread
Regulator outlet: 8/10 mm (H.9) compression fitting

• Indicates which cylinder is in use
• Automatic switching from empty to full gas cylinder
• Easily detect and reset triggered crash sensor
• For safe mobile and stationary operation
• Low weight
• Quick installation possible

The new generation Truma DuoControl CS is a gas pressure regulator and changeover system in one. It supplies all gas-powered appliances in the caravan with the correct pressure. The clever part: You can connect two gas cylinders to the gas pressure regulator. As soon as the primary cylinder is empty, the system automatically switches to the secondary cylinder.

This is how the crash sensor ensures safety:

The integrated crash sensor is the icing on the cake: In the event of an accident, it immediately shuts off the gas supply. This meets all legal requirements and allows you to operate the gas system while driving. The refrigerator stays cold, the caravan stays warm – what more could you want?

If the road is bumpy and the crash sensor is triggered for no apparent reason, you can reset it using the yellow reset button. The Truma DuoControl CS is then ready for the next adventure.
