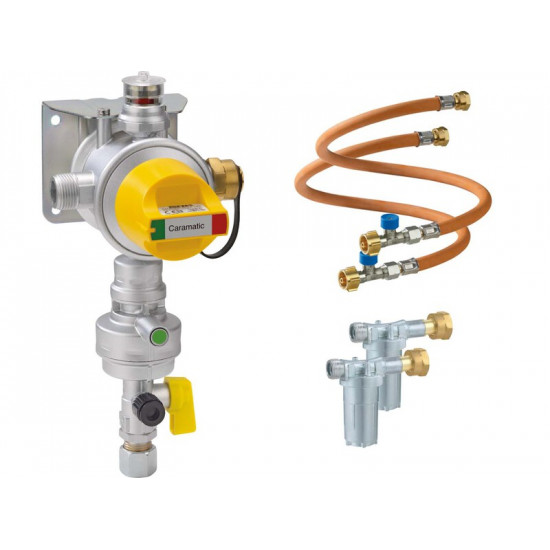

Caramatic DriveTwo-Set 30 mbar - Vertical installation

• Heating while driving thanks to integrated mechanical crash sensor (shuts off the gas flow in the event of an accident)
• Automatic switchover from empty to full gas cylinder
• Bottle change possible without interruption of operation
• Gas backflow protection: prevents gas flow from "backfiring" during cylinder change
• Consistent gas supply through optimal utilization of the contents
• Indicator showing which gas cylinder is being drawn from
• Europe-wide use through the use of country-specific high-pressure hoses (not included in delivery)

Safety gas pressure regulator with automatic changeover valve for operating two-cylinder systems in caravans and motorhomes while driving, for connection to Gas cylinders via high-pressure hose, for pressure regulation to the nominal pressure of the gas appliance. Consisting of: automatic changeover valve, low-pressure regulator with PRV safety relief valve, mechanical crash sensor with new pendulum solution, operating knob, operating and reserve indicators, gas backflow preventer, test device and wall bracket. ConnectClean: Gas filter to prevent contamination in the gas installation. Protects the pressure regulator or automatic changeover valve from contamination by oily aerosols and evaporation residues.

2 ConnectDrive

High-pressure hose assembly with hose rupture protection for connection to all wall-mounted low-pressure regulators with male thread M20 x 1.5 inlet, especially for heating while driving, connected to the gas cylinder valve.
