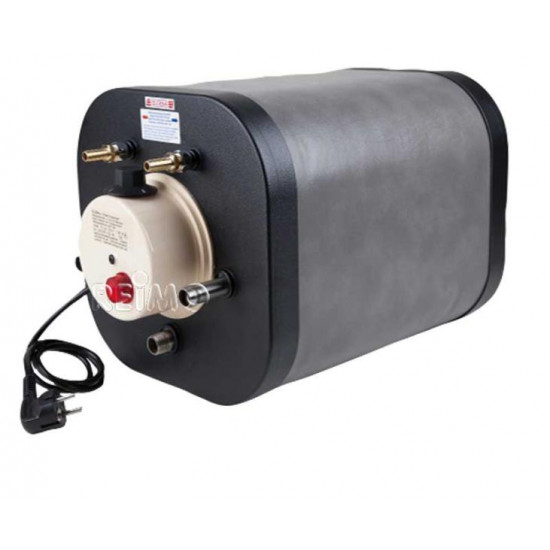

Elgena Nautic Therm Type ME Boiler 10L

• Hot water for shower, washbasin, sink
• For shore or onboard power
• Free heating via the cooling water
• Long storage of hot water
• Hot water boiler with stainless steel tank
• Electric heating, as well as thermostatic control from 30° - 85°C
• Overheating protection / frost protection
• 1 m cable and Schuko plug
• With built-in heat exchanger for connection to the vehicle's cooling water system

Type ME is a combination unit; It can heat the domestic hot water via the engine cooling water, as with Type M, or, when stationary, via the integrated electric heater, as with Type E. Nautic-Therm is pressure-resistant and can be installed as standard or retrofitted to any cold water supply with hose lines. The water connection is compatible with submersible pumps, foot or hand pumps, and pressure pumps. If connecting to a water line with a pressure higher than 2.5 bar, a pressure reducer must be used. The units are designed for hose connections to counteract vibrations in marine and mobile applications. Nautic-Therm is designed so that even with an empty domestic hot water tank, the boiler always remains full and can never be pumped dry. Complete emptying is therefore only possible by opening the water drain valve. Nautic-Therm boilers and heat exchangers are made of the highest quality acid-resistant V4A stainless steel and are fully insulated. Thanks to the excellent insulation, you will still have hot water available the next day. Installation can be easily carried out, for example, in a storage compartment, under a seating area, or wherever suitable space is available. Detailed installation instructions are included with every unit. Technical Data: Capacity: 10 L Dimensions (L x W x H): 37 x 30 x 30 cm Weight: approx. 4.5 kg Installation Position: Horizontal - Mounting Strap Heating Element: Stainless Steel V4A / Incoloy Voltage / Power: 230 V - 660 W (approx. 3 A) V4A Heat Exchanger 18 mm Heating Time: approx. 40 min (55°C 660 W) Connection Cable: 230 V 1 m with Schuko Plug Water Temperature: from 30 °C - 80 °C continuously adjustable
