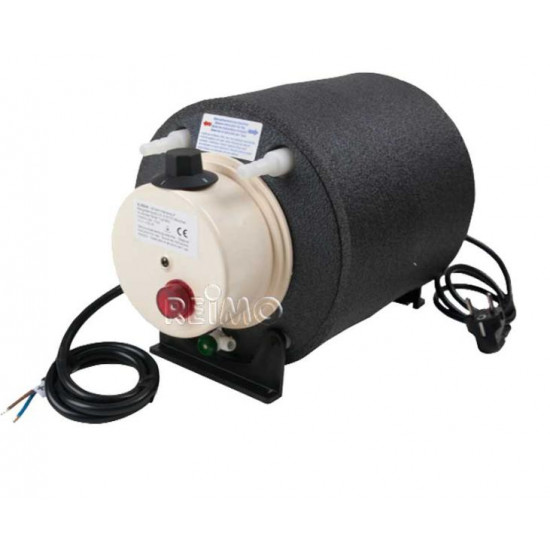

KB 6 combination boiler 6 l - 12 / 230 V

• Fast heating with low power consumption
• Standard with stepless thermostat, frost protection and overheat protection
• 10 mm water connection
• Heatable from 30°C - 85°C
• TÜV-tested
• 5-year warranty

KB 6 and the combination versions are low-pressure boilers. Can be connected with a hose to a pressure pump without a check valve or to any other water system with a suitable fitting. When using a pressure pump, they must be connected with a low-pressure fitting. Heatable from approximately 35°C to approximately 85°C; at full heating, mixable to approximately three servings; low power consumption and rapid reheating with good insulation. The boilers are made of high-quality, heat- and corrosion-resistant plastic. Easy and quick installation with mounting brackets.

Technical data:

• Capacity: 6 liters
• Installation position: Horizontal - wall mounting
• Heating element: Stainless steel V4A / Incoloy
• Voltage / Power: 230 V - 660 W (approx. 3 A): 230 V - 330 W (approx. 1.5 A) / 12 V - 200 W (approx. 16 A) or combined!
• Heating time: approx. 15 min (55 °C 660 W)
• Connection cable: 230 V 1 m with Schuko plug - 12 V 1 m cable 2 x 2.5 mm ²
• Water temperature: continuously adjustable from 30 °C - 80 °C
• Frost protection: from 0 ° Adjustable C - F
• Water tank: PP plastic / suitable for drinking water
• Insulation: PU foam with covering
• Water connections: Ø 10 mm for hose connection
• Boiler drain: Manual drain valve
• Warranty: 5-year manufacturer's warranty

Optional accessories:

Mixing valve, item no. 67010
