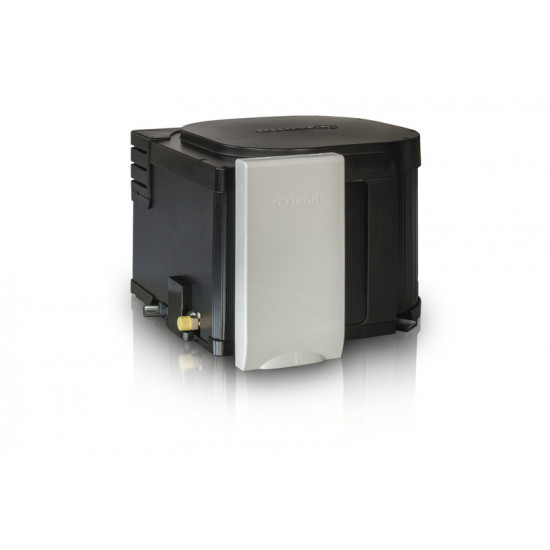

Gas/electric boiler BGE10 TB - 3.5 bar - 30 mbar

Width: 347 mm
Weight: 7.4 kg
Height: 261 mm
Length: 360 mm
Voltage: 230 V
Burning Stages: 2
Gas Pressure: 30 mbar
Type: Gas/Electric Boiler
Heating Power: 1500 W
Fuel Consumption: 120 g/h
Volume: 10 l

• Very short heating times: only 16 minutes in mixed operation
• Powerful electric heating element with two power levels
• Mains-independent operation with a powerful 1500 W gas burner
• 10-liter stainless steel tank
• Sufficient hot water for at least 3 hot showers

The The gas/electric boiler also includes an electric heating element that heats the water even faster. It reduces the heating time from half an hour in pure gas operation to a quarter of an hour in mixed operation. The temperature is continuously adjustable.

Technical Data:

• Water pressure: max. 2.8 bar
• Current consumption at 12 V: Ignition/Heating/Standby 0.16/0.12/0.05 A
• Electric heating element: 230 V / 850 W / 1300 W
• Heating time for 10 liters from approx. 15°C to 70°C in gas/electric/mixed operation (gas+electric): approx. 31/29/16 min. Temperature limiter: 70°C

Note: One of the two water sets must be ordered separately for installation of the boiler!
