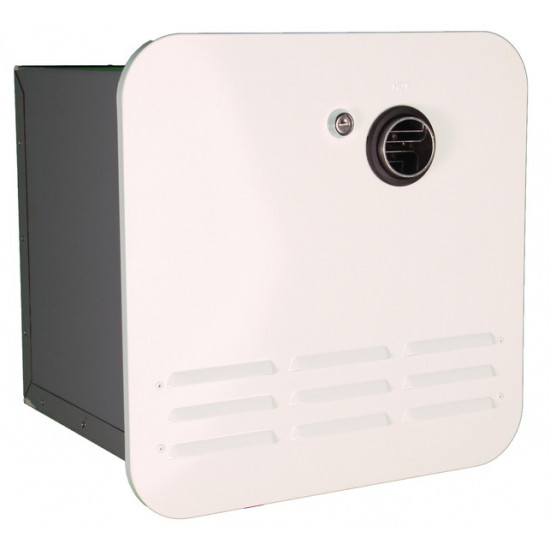

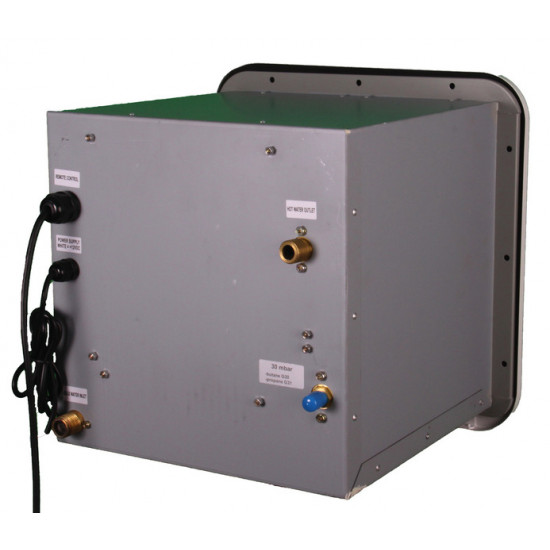

Gas instantaneous water heater IWH-1.5 E

Width: 320 mm
Weight: 11.9 kg
Height: 320 mm
Length: 320 mm

• Highly efficient copper heat exchanger with up to 92% efficiency
• Burner output 10 kW
• Up to 60% less gas consumption than units with a storage tank – no constant reheating required (absolute peace and quiet at night)

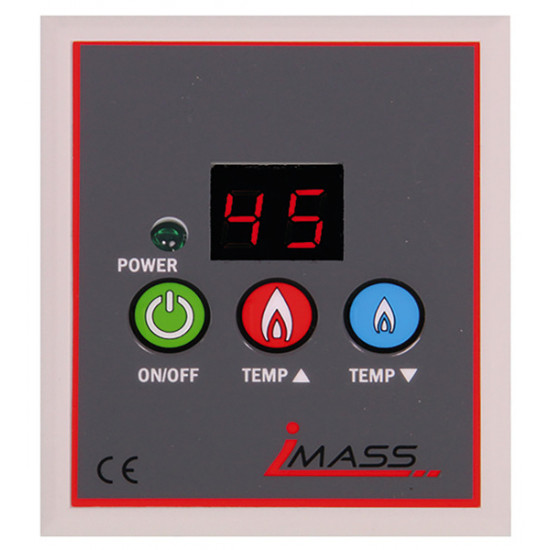

• Infinitely variable water temperature selection (35 to 60°C) on the control panel
• No corrosion, bacteria, or legionella problems
• Low weight, as there is no tank

Hot water is available in caravans and motorhomes at any time and in "unlimited" quantities without preheating. Enjoy the comfort you're used to at home, even on vacation. No matter how long you shower, no matter how many people are there – there is always enough hot water. Technical Data: Approved in the following countries: AT, BE, BG, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, HR, IE, IS, IT, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK Gas type: Butane G30/Propane G31: 30 mbar Heating appliance classification: Type C12 (Fanned) Flue pipe diameter: 45 mm Standard flue pipe length: < 15 mm (measured from the surface of the service door) Nominal maximum input power: 10 kW Maximum gas consumption: 765 g/h

Maximum gas consumption: 36 Mj/h

Minimum input power: 5 kW

Pressure at test connection: 22 mbar

Efficiency: > 84 %

Maximum water pressure: 5 bar

Minimum water pressure: 0.5 bar

Minimum starting flow rate: 1.5 l/min

Selectable water temperature: 35 - 60 °C (continuously variable)

Temperature increase at 3.3 l/min: 37.7 °C

Prerequisite for a stable minimum flow rate: Cold water temperature maximum 15 °C

Water temperature of 35.5 °C: 3.3 l/min

Nominal supply voltage VDC: 12 VDC

Voltage range VDC: 10.5 - 15

Maximum current consumption: 0.44 A

Storage temperature (dry): 0 - 50 °C
