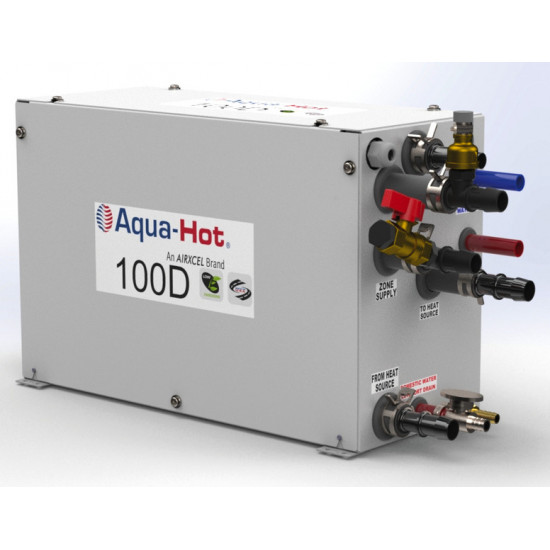

Heating system including hot water system Aqua-Hot 100D

Width: 190 mm
Weight: 20.4 kg
Height: 292 mm
Length: 448 mm

• Significant space saving thanks to the all-in-one solution
• Ensures a comfortable indoor climate and a continuous supply of hot water
• Suitable for altitudes up to 5000 m
• Virtually smoke- and odor-free thanks to Aqua-Hot low-emission systems
• Low-voltage fan for virtually silent operation

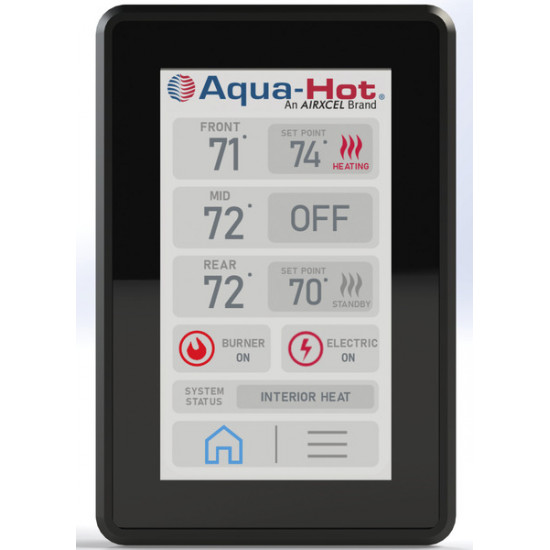

• User-friendly control via LCD touch panel

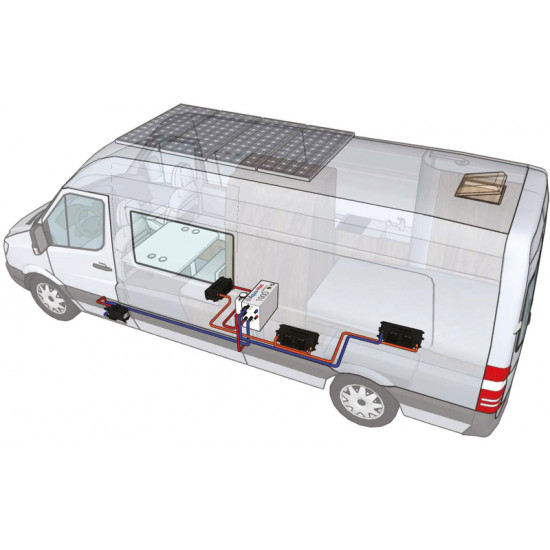

Hydronic heating systems are designed to offer the best in warmth and comfort. In these systems, heat is transferred via a circulating fluid (glycol solution) through a closed pipe system to heat exchangers, which then distribute the heated air into the living space. Pipe coils through which the water flows wrap around the boiler to transport hot water to the taps and appliances in the motorhome. The connections for heating, domestic hot water, and fuel supply outlet are conveniently located at the rear of the tank, allowing for quick and easy installation. Thanks to the use of RV-C open-source intelligence, the entire control system can also be integrated into the motorhome's main control panel. Technical specifications: Fuel type: Diesel; Altitude suitable up to 2000 m; Power supply: 12V DC; Max. Heating capacity: 6.5 kW Current draw: (max.) 7 A Current draw (average): 5 A Hot water flow rate: 3.5 l/min (40 °C) Glycol solution tank: 6.8 l Glycol solution tank (max. temp.): +82 °C 230 V electric element: 1 x 1.5 kW Fuel consumption: 0.22–0.45 l/h Time to reach operating temperature: 15 min Heating zones: 3 Pipes: 19 mm Ø Weight (full): 26.7 kg
