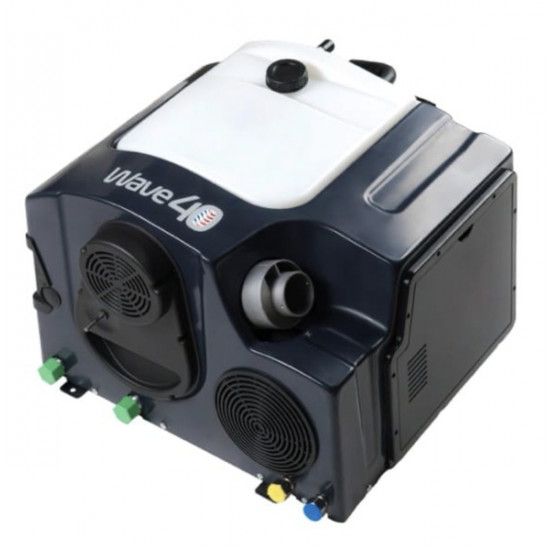

Aqua-Hot Wave40 – The all-in-one heating system solution

• Continuous and unlimited hot water supply (no waiting times, no need to drain the water during the winter months)
• Warm air heating
• Hot water heating (e.g., via heat exchanger, underfloor heating, etc.)
• Warm air heating and hot water heating can be operated simultaneously
• Operation of the heating unit in alpine regions up to 4,600 m altitude

The Aqua-Hot Wave 40 is an innovative all-in-one heating system that offers continuous hot water on demand as well as the option of heating with circulating air or hot water. Thanks to its flexible power control from 2 kW to 10 kW, the heater is suitable for small, medium, and large motorhomes. Further specifications: Fuel type: Diesel; Fuel consumption: 190 - 930 ml/h; Operating pressure: 2.8 bar; Heating output: 2 kW / 4 kW / 6 kW / 8 kW / 10 kW; Power supply: 12 V DC / 230 V AC; Current consumption at 12 V: min. 3 A / max. 14A (short-term starting current)

Power consumption at 230 V 3.9 A / 7.8 A

Warm air flow rate 128 - 306 m³/h

Fan speeds: Heating / Circulation 4 / 10

Hot water system heating capacity 27,300 BTU/h – 8 kW

Continuous hot water 5.0 l/min at 46°C

Maximum domestic hot water pressure 6.9 bar

WiFi function and available app Yes

Dimensions (LxWxH) approx. 508x450x305 mm

Weight approx. 18 kg
