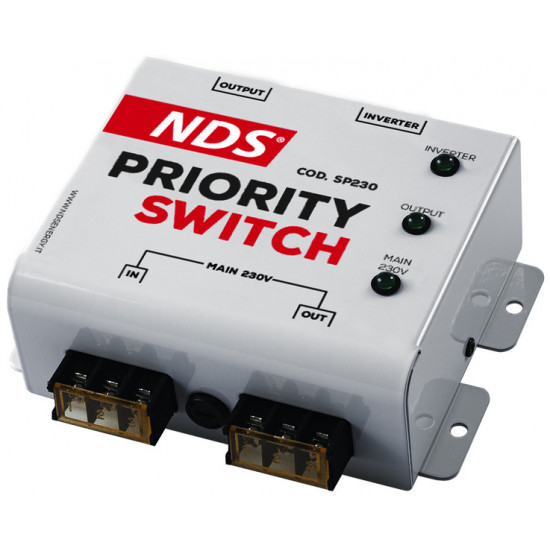

Priority Switch

Width: 128 mm
Weight: 0.615 kg
Height: 48.5 mm
Length: 144 mm
Rated power: 2300 W
Input voltage: 230 V
Output voltage: 230 V
Peak power: 3000 W

• For inverters up to 2300 watts
• Priority Switch - priority switching for inverters
• Automatic switching between shore power and power from the inverter
• As soon as external power, e.g., from the campsite, is available, the inverter operation is interrupted
• There is a second high-load output that only works when external power is available (e.g., for operating chargers or air conditioners)
• This prevents the inverter from being overloaded

PRIORITYSWITCH is the intelligent device that automatically switches between inverter and grid power. The system selects the most cost-effective 230V source when two power sources are present: grid power and an inverter connected to a battery. By connecting both power sources at the PRIORITYSWITCH's input, the external electrical grid always takes priority.

This system prevents damage to the system caused by the simultaneous use of the two sources (inverter + 230V grid).

The device has two outputs: the first is for connecting appliances that should only be used when connected to the 230V grid, such as air conditioners, refrigerators, and other large appliances; the second output is for accessories that can be powered by both the inverter and the grid, such as... B. the 230V sockets of the boat or the vehicle in general.
