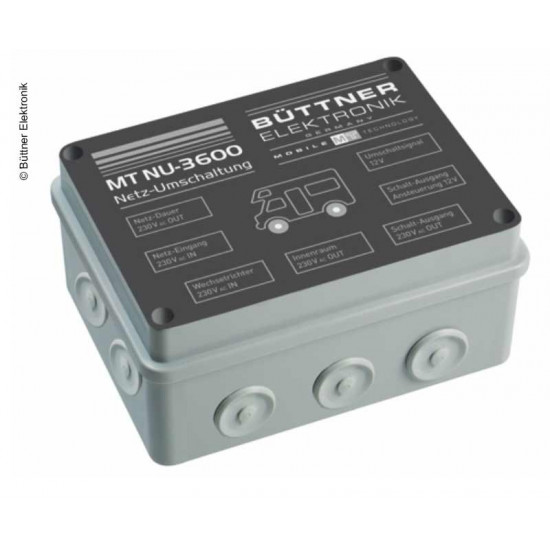

Grid switching for MT NU-3600 sine wave inverter

Width: 114 mm
Weight: 0.37 kg
Height: 73 mm
Length: 154 mm
Input voltage: 230 V
Output voltage: 12-230-230 V
Switching time: 0.5 ms

• Various connection options
• Protection class IP55
• Protection against overload, short circuit, and backfeed

Intelligent motorhome mains priority switching with very high switching capacity. Suitable for all sine wave inverters. The mains switching ensures that the optimal 230 V supply is always available at the interior sockets. Controlled via a battery computer MT 5000 iQ. The following connection options are available: Mains/shore power input, inverter input, output for charger, refrigerator, etc., output to interior sockets, 230 V output (after 12 V control), and operating status signal output.
