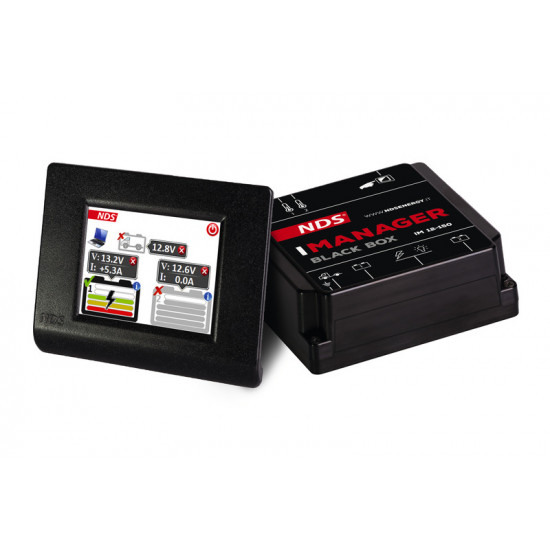

Touchscreen battery management system iManager - 12 V / 150 A

✓ Jauna prece

Pārtulkot produkta aprakstu uz

Apraksts

Color: Black
Voltage in V: 12 V
Current draw A: 120 A
Maximum current draw: 150 A
Installation dimensions length: 79 mm
Installation dimensions width: 100 mm
Installation dimensions height: 10.3 mm

Automatic or manual management of one or two auxiliary batteries, even with different technologies and current ratings
Dedicated output for recharging the vehicle battery when the auxiliary batteries are 100% charged (e.g., in the garage)
Displays the battery charge level
Displays voltage and charge/discharge amperage
Displays date and time
Automatic battery shutdown (below 11V) or manual, via touchscreen
Displays information and advice on battery management and maintenance Batteries: Temperature control during charging/discharging for increased safety. Black box/display connection possible via cable (code iM 12-150) or wirelessly (code iM 12-150W). iManager is the innovative management system for all batteries and onboard energy requirements, which primarily avoids the "permanent parallel connection" of batteries. It manages up to three batteries simultaneously or separately, even with different technologies and current ratings, thus improving performance. Thanks to the automatic battery shutdown function, it extends battery life. The touchscreen displays all available information, including battery charge levels and usage. With a simple touch, batteries to be activated or deactivated can be manually selected for fully personalized management. The iManager constantly monitors battery voltages and automatically selects the appropriate battery based on charging and discharging currents, ensuring all batteries maintain the same charge level and thus optimizing performance. Installing two auxiliary batteries safely, avoiding outdated and inadvisable parallel operation, requires an electronic system management device. iManager allows you to install different batteries based on: technology (lead-acid, gel, AGM), power output, and battery age. Further specifications of the "Black Box": Nominal voltage: 12 V (9-18 V) Max. Battery capacity per battery: 600 Ah
Max. Current draw: 150 A (for 20 min.) / 100 A (continuous) Starter battery charging threshold: < 12.5 V Battery disconnect voltage: 10.5 V Battery disconnect temperature: 70 °C Current consumption with battery connected: 8 mA Current consumption with battery disconnected: 4 mA Starter battery fuse: 20 A Maximum battery fuse: 120 A Operating temperature: -15 °C to +65 °C Further display specifications: Nominal voltage: 12 V Maximum brightness consumption: 86 mA Display standby consumption: 38 mA mA
Consumption with battery disconnected: 8 mA

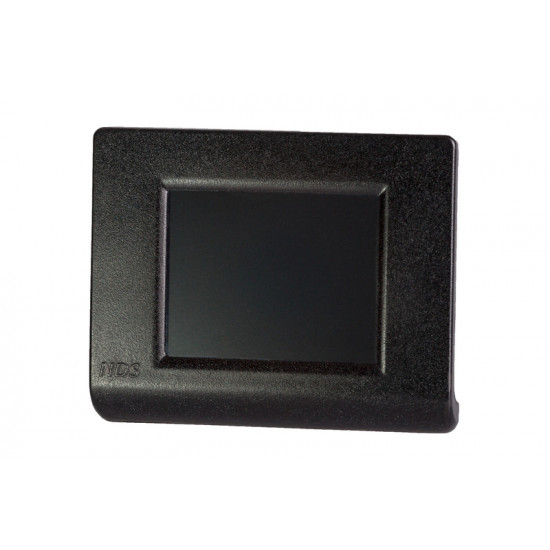

Display type: LED TFT 2.83", 262000 colors, touchscreen
Operating temperature: -10 °C to +70 °C

Atlikums Rīgas noliktavā: Ir pieejams, 5-9 darba dienas
MPN: 85182

318.99€

Bez PVN: 263.63€
