Via Caravan Control System with monitoring/switching system for up to 10 devices

Width: 157.1 mm
Depth: 5.6 mm
Color: Black
Length: 82.1 mm

• Bonded with Gorilla Glass
• CNC machined housing made of anodized aluminum
• Automatic display brightness adjustment
• 8 illuminated buttons for monitoring and switching
• Wi-Fi connectivity with free Android and iOS apps

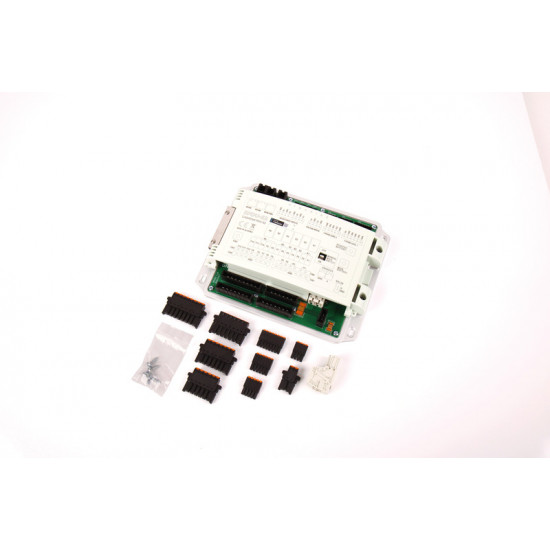

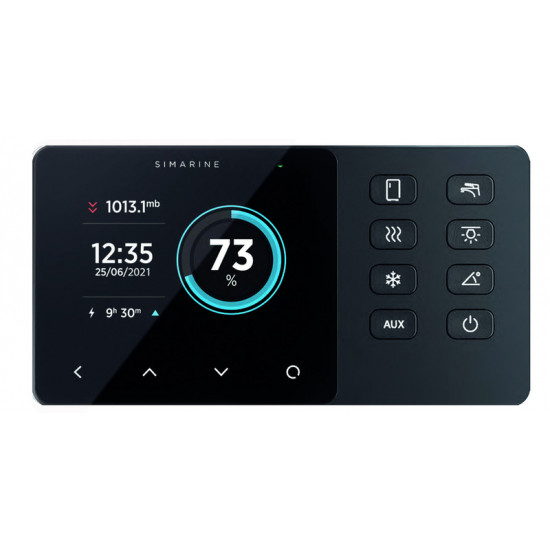

Monitoring and switching system for caravans and motorhomes. You can even monitor and control your vehicle with a smartphone! Monitoring of batteries, tanks, temperatures, currents, voltages, solar energy, and leveling, as well as control of a water pump, water heater, refrigerator, and lights. Panel SCP100: High-quality digital control panel with a high-resolution 3.5-inch LCD TFT IPS color display. Power Unit SPU202: Monitoring of 2 batteries, 2 tanks, charger, solar panels, and 3 temperature sensors. Switching of the water pump, refrigerator, and lights. Includes 10 fused outputs for various devices and connection cables.

Technical Data:

• Voltage range: 6 – 35 V
• Temperature range: -10 – +70 °C
• Power consumption operating, WLAN on, 100% illumination: 90 mA
• Power consumption operating, WLAN off, 70% illumination: 35 mA
• Power consumption standby, WLAN off, 0% illumination: 18 mA
• Power consumption switched off, logger still active: 5 mA
• WLAN radio frequency bands: 2.4 GHz
• Caravan Panel: 157.10 x 82.10 x 5.60 mm
• Power Unit: 300 x 140 x 50 mm
• Connection options up to Batteries: 6
• Connection options up to shunts: 24
• Connection options up to temperature sensors: 10
• Connection options up to tank level sensors: 14
• Connection options up to tilt sensors: 2
• Connection options up to smartphone app: 1
• Logger capacity up to: 3 months
