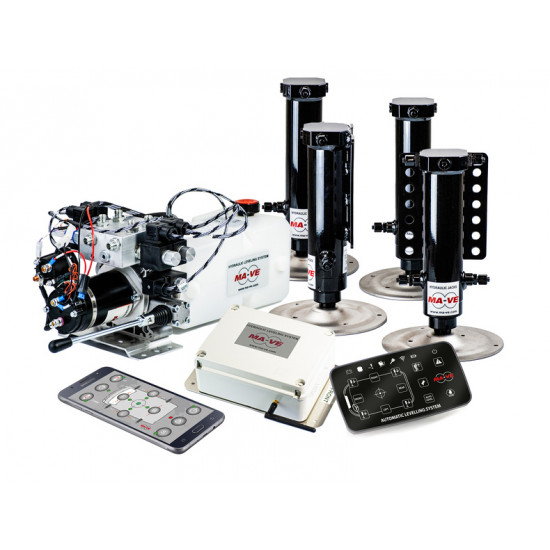

MA-VE Hydraulic leveling jacks - 12V system for Fiat Ducato with van low-frame chassis*

• Controllable via control panel or via Bluetooth smartphone app
• Load capacity per telescopic support approx. 1880 kg
• Fully automatic and manual leveling possible
• 12 V system with E-Mark certification

Front support height: Min. 310 mm / Max. 550 mm

Rear support height: Min. 310 mm / Max. 550 mm

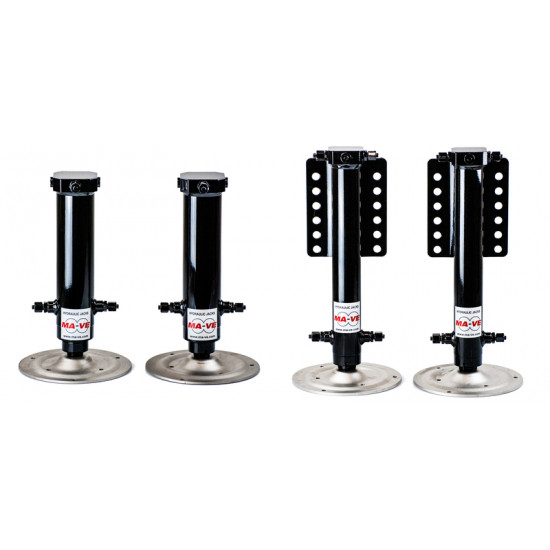

The MA-VE leveling system levels your motorhome easily and fully automatically at the touch of a button. With just the touch of a button, the system starts the leveling process, ensuring your vehicle is level and stable within minutes – regardless of the terrain or surface. The waterproof electronic outdoor unit contains all the controls for the leveling system. Mounted on the underside of the vehicle, the control unit ensures perfect leveling. Equipped with a Bluetooth® antenna, it allows you to operate the system wirelessly via the touchscreen panel within a radius of approximately 10 meters around your vehicle. The intuitive control unit consists of a docking station (permanently installed in your motorhome) and a removable touchscreen panel. In an emergency, the hydraulic jacks can also be operated manually. For safety reasons, the system is only operational when the ignition key is removed and cannot be used while the engine is running. The hydraulic jacks vary depending on the make, model, and year of the vehicle and offer a lifting capacity of approximately 1880 kg. The hydraulic leveling jacks can be installed directly on the chassis via their flange or using vehicle-specific adapters. The leveling jacks and adapters are supplied complete with all necessary mounting hardware. Total weight: approx. 50-60 kg. NOTE: Please provide us with your vehicle details before purchasing so that we can determine and confirm the correct system for your vehicle. We recommend professional installation.
