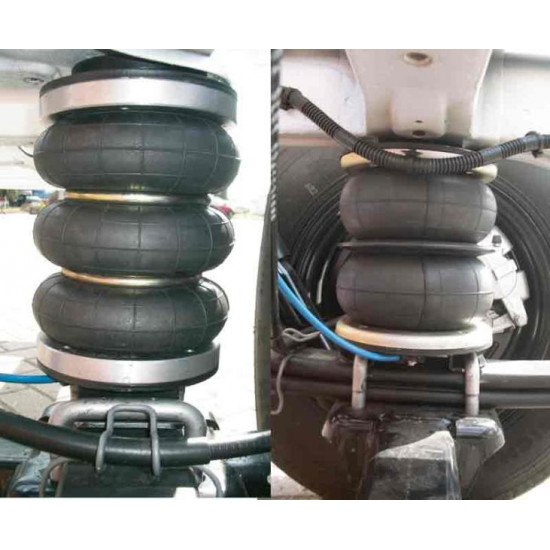

SMV air suspension systems for the rear axle

• Swaying of the body is significantly reduced
• Robust air springs effectively reinforce the rear axle
• The air springs compensate for even heavy loads

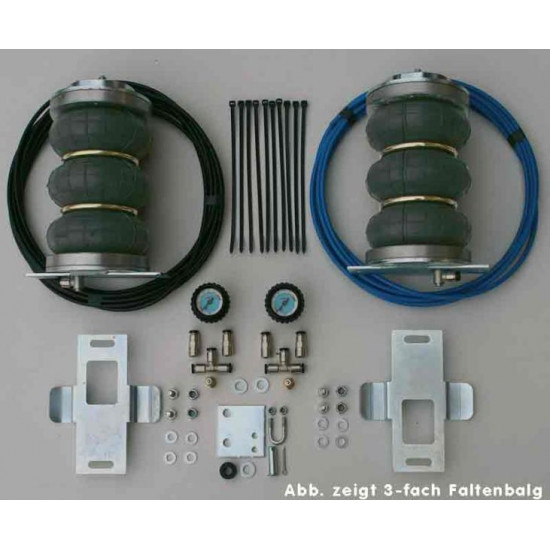

Suitable for alcove motorhomes and integrated motorhomes. For panel vans that are frequently loaded and unloaded. Increased load capacity is only possible with vehicles equipped with ABS. The air suspension systems are generally supplied as 2-way systems, allowing you to vary the operating pressure between the left and right sides as needed. Supplied with 2 pressure gauges, 2 valves, small parts, suitable mounting hardware, and TÜV certification.
2 variants: Air spring Z6 = 3-fold bellows with approx. 6-inch diameter or air spring Z8 = double bellows with approx. 8-inch diameter. The 8-inch version offers even greater driving comfort due to its larger diameter, as the weight is distributed more evenly and uneven road surfaces are better dampened.
