Al-KO ClickFix leveling jacks - Mechanical

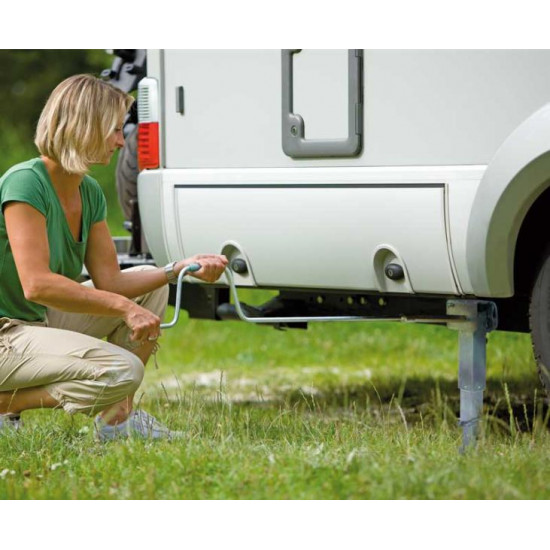

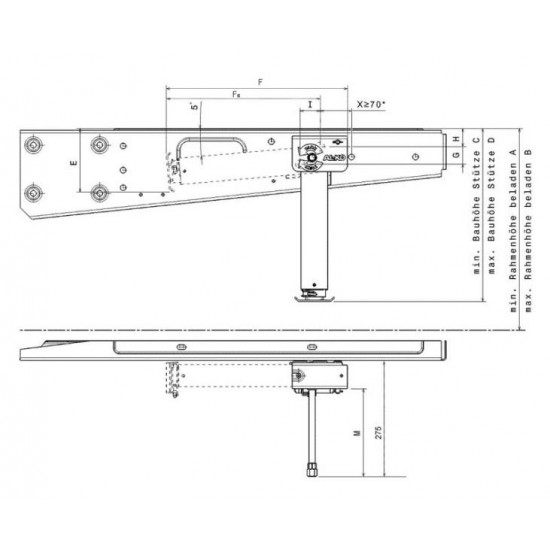

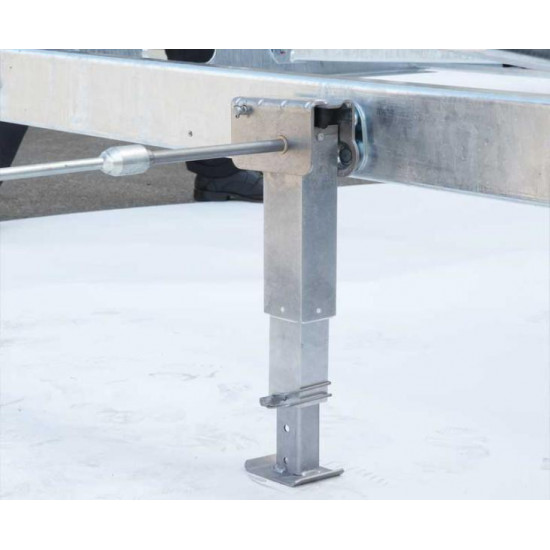

Ensures the vehicle stands securely. For use on motorhomes with an AL-KO frame or frame extension. From model year 8/95 onwards, all mounting points are pre-drilled on the frame. For older vehicles, the holes must be drilled manually. Robust support leg for a firm and secure stance. Operation is via a crank handle; the support leg automatically tensions itself when raised. Free-swinging mechanism: If the motorhome is moved despite the support leg being extended, it automatically tilts forward and backward. For frame height A: loaded min. 460 mm, loaded max. 710 mm; overall height B: min. 430 mm, maximum 730 mm; required installation space L: 531 mm; drive shaft length E: 200 mm; weight: 8.9 kg (for complete support set = 2 pieces, including screws and mounting hardware).
