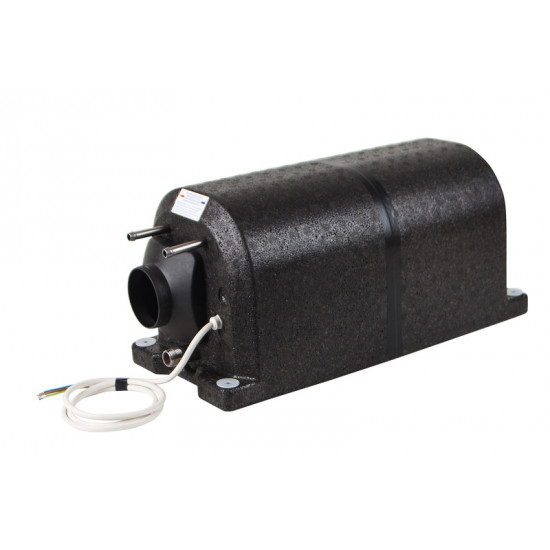

Elgena Nautic Compact Air Boiler 10L 230V 500W with heat exchanger

• Hot water via warm air and electricity
• Ideal for motorhomes, caravans, yachts, sales vehicles and similar
• Overheating protection
• Self-regulating radiator
• 1 m cable
• 5-year warranty

When fully heated (electrically to approx. 70°C, via air to the temperature of the airflow), two to three times the amount of water can be drawn by mixing in cold water. It can be installed as standard or retrofitted to any cold water supply via a hose.

The water connection is possible with a submersible, foot, or hand pump. When connected to a pressure pump, a safety valve set must be installed. If connected to a water line with a pressure higher than 2 bar, a pressure reducer must also be used.

The units are designed for hose connections to counteract vibrations in marine and mobile applications. Nautic compact LE is designed so that even when the domestic hot water tank is empty, the boiler always remains full and can never be pumped dry.

Robust insulation of the unit, made of acid-resistant V4A stainless steel, ensures that hot water is still available the next day. The installation can be carried out, for example, in the storage space under a seating area or wherever suitable space is available. Detailed assembly instructions are included.

Technical data:

• Capacity: 10 liters
• Dimensions: L54 x W22 x H23 cm
• Weight: approx. 5 kg
• Installation position: horizontal - floor mounting
• Operating pressure: 0 - 3 bar
• Voltage / Power: 230V / 500W
• Heating time: approx. 54 min (55°C 500W)
• 1 m cable, connection cable without plug
• Water temperature: approx. 70°C preset
• Material: Heating element stainless steel V4A / Incoloy
• Water tank: stainless steel V4A, insulation EPP
• Water connection: Ø 10 mm for hose connection
• Manual drain valve for Boiler draining
• 5-year manufacturer's warranty

Optional accessories:

• Safety valve set, item no. 67051
