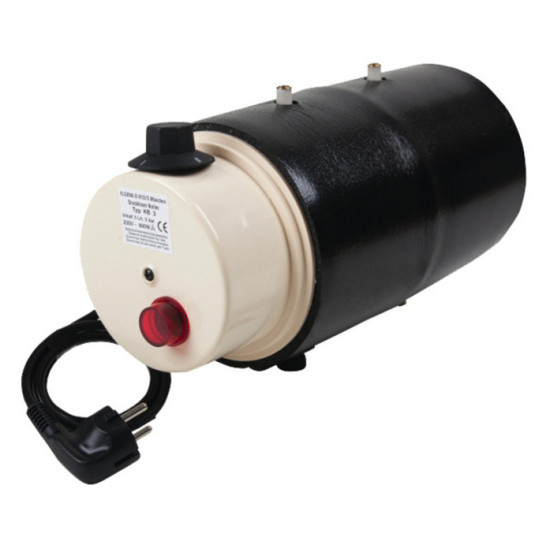

KB 3 boiler 3 l - 230 V / 660 W

• Fast heating with low power consumption
• Standard with stepless thermostat, frost protection and overheat protection
• Water connection 10 mm
• Heating range: 30°C - 85°C
• TÜV-tested
• 5-year warranty

KB 3 and the combination versions are low-pressure boilers. They can be connected with a hose to a pressure pump without a check valve or to any other water system with a suitable fitting.

When using a pressure water pump, they must be connected with a low-pressure fitting.

Heatable from approx. 35° to approx. 85°C, mixable to approx. 3 times the amount of water used, low power consumption and fast reheating with good insulation. The boilers are made of high-quality plastic, heat and corrosion resistant. Easy and quick installation with mounting brackets.

Technical data:

• Installation position: Horizontal - wall mounting
• Heating element: Stainless steel V4A / Incoloy
• Voltage / Power: 230 V - 660 W (approx. 3 A): 230 V - 330 W (approx. 1.5 A) / 12 V - 200 W (approx. 16 A) / 24 V - 400 W (approx. 16 A) or combined!
• Heating time: approx. 15 min (55 °C 660 W)
• Connection cable: 230 V 1 m with Schuko plug - 12 V 1 m cable 2 x 2.5 mm ²
• Water temperature: continuously adjustable from 30 °C - 80 °C Adjustable
• Frost protection: adjustable from 0°C to 0°F
• Water tank: PP plastic / suitable for drinking water
• Insulation: PU foam with covering
• Water connections: Ø 10 mm for hose connection
• Boiler drain: manual drain valve
