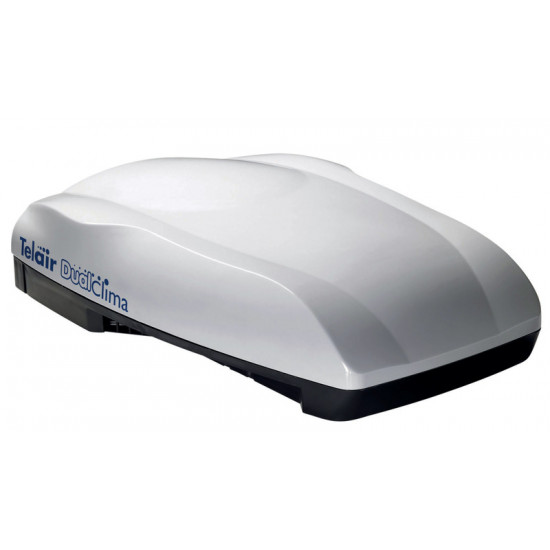

Telair Dualclima 8400H roof air conditioner

Weight: 36 kg
Color: White
Minimum wall thickness: 30 mm
Maximum wall thickness: 70 mm

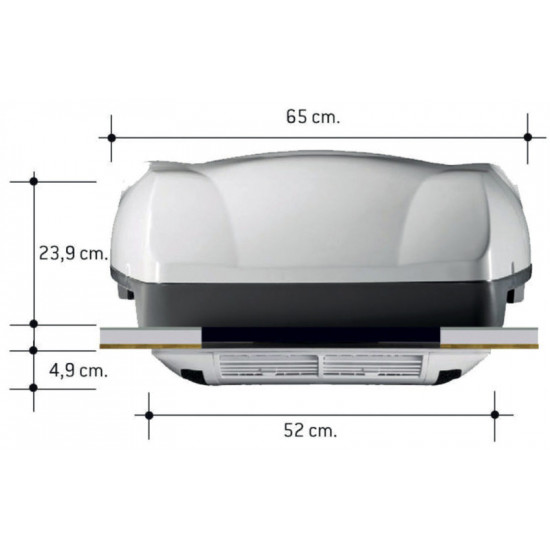

External dimensions width: 65 cm
External dimensions height: 23.9 cm
Heating capacity: 2460 W
External dimensions length: 98 cm
Input voltage: 230 V
Air distributor dimensions height: 49 mm
Cooling capacity: 2500 W
Nominal current (A) cooling capacity: 4.3 A
Nominal current (A) heating capacity: 4.1 A

• Monoblock air conditioner with highly efficient heat pump
• Suitable for medium and large motorhomes
• Low energy consumption despite high heating capacity

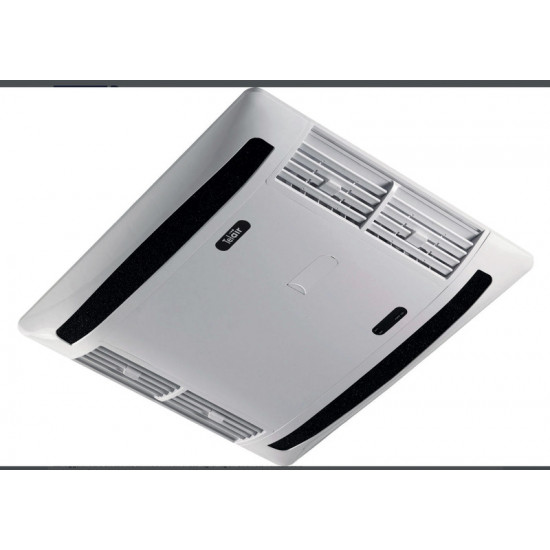

• Interior diffuser with LED lighting
• Remote control included with timer function
• For roof thicknesses from 30 to 70 mm

DUALCLIMA monoblock air conditioner, specifically designed for installation on the roofs of medium and large motorhomes and caravans. Particular attention has been paid to quiet operation both indoors and outdoors.

• HEAT PUMP
• The highly efficient heat pump delivers very high heating output with less than half the energy consumption. The heat pump is effective at outside temperatures down to 4°C. Below this value, performance is drastically reduced.
• AUTOMATIC CONTROL
• After activating the AUTO function, the air conditioner automatically selects the most suitable fan speed and cooling or heating function.
• REMOTE CONTROL with programmable timer and ON/OFF button for diffuser lighting
• ANTI-ICE SENSOR
• INTERNAL FILTERS replaceable and washable
• Suitable for roofs with a thickness of 30 to 70 mm

Technical Data:

• Fan speeds: 3 + AUTO
• Mains voltage: 230 V / 50 Hz
• Starting current: 18 A (0.10 sec.)
• Power consumption: Cooling 990 W / Heating 950 W
• Required generator: 2200 W
• Maximum air cooling: 480 m³/h
