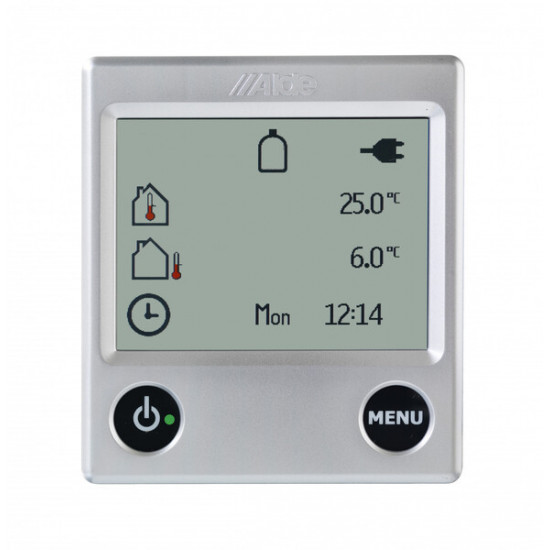

Control unit touchscreen

Width: 86 mm
Weight: 0.15 kg
Color: Silver
Height: 97 mm
Length: 40 mm

• Alde Color Touchscreen Control Panel
• Improved display and readability
• Compatible with all Alde Compact 3010 boilers

User-friendly color touchscreen from Alde with modern technology. Self-explanatory color menus. Pressure-sensitive 3.5-inch touchscreen for controlling the various functions. High-resolution display for easy reading day and night. The control panel is compatible with all Alde Compact 3010 series boilers. Control panel with three menu categories: Information menu: Displays time, temperature, and information about connected appliances. Settings menu: Basic heating settings, such as temperature, additional hot water, and energy selection. Tools menu: Settings and additional functions of the Compact 3010. Installation instructions: Mount at least 1 m above the floor, but not directly near the ceiling. Do not place near heat-emitting components such as CD players, refrigerators, and lamps, as this may lead to temperature errors. The installation area behind the unit must be well ventilated. If the thermostat on the control unit is affected despite following the instructions, an external sensor can be connected to the control unit.

Demo: https://control-panel.alde.se/alde/?_gl=1*1n4vqh7*_ga*OTU5OTg1NzE1LjE2OTUzNzYxNDk.*_ga_LELLFLWTSD*MTY5NTM3NjE0OS4xLjEuMTY5NTM3NjY5MC41Mi4wLjA.
