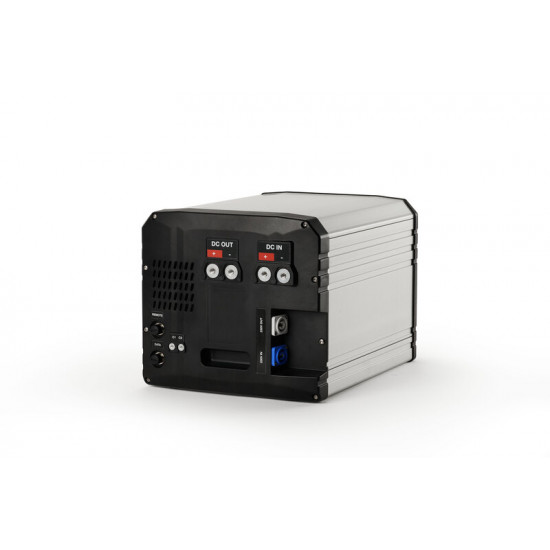

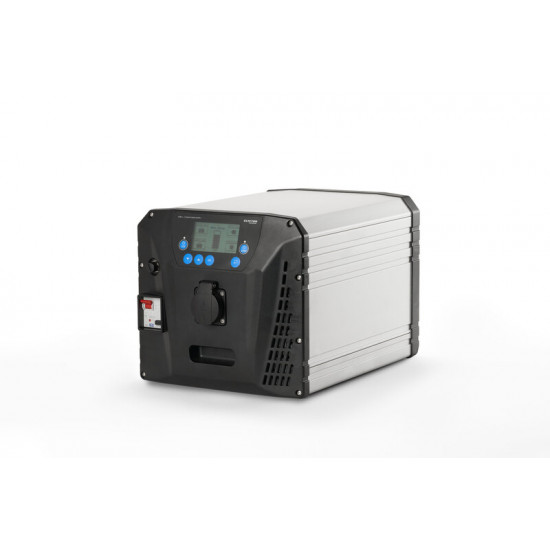

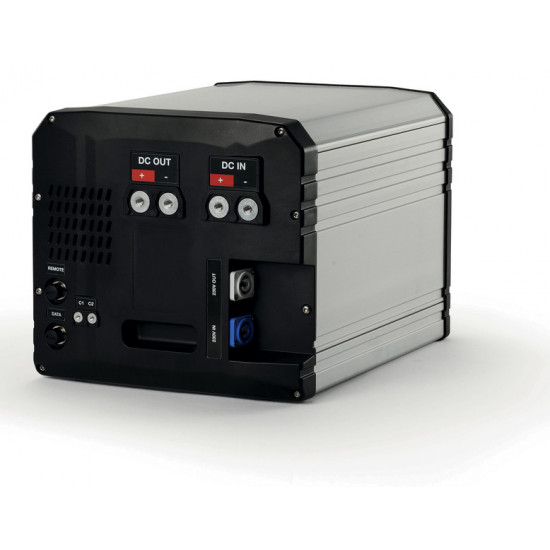

Lithium Power Supply II - LPS II 3012-160

Width: 277 mm
Weight: 29.5 kg
Height: 256 mm
Length: 409 mm
Capacity: 160 Ah
Battery type: LiFePO4

• Euro-6 optimized charging via vehicle engine
• Connections for 12-volt and 230-volt consumers
• Integrated solar charge controller (MPPT), inverter, battery management system and charge booster
• Very short installation time of under two hours
• Compact design
• Extreme weight savings (> 75% compared to conventional systems)

The Lithium Power Supply II (LPS II), the successor to the popular LPS, has been significantly improved in many features. With the improved complete solution based on state-of-the-art lithium technology, not only is the vehicle's own power consumption significantly reduced, but very fast charging while driving is also possible. The operation of large consumers with high inrush currents is also guaranteed. Despite comparable dimensions to the predecessor LPS, numerous new features and functions are integrated, and higher performance is possible. The integrated solar charge controller (MPPT) is powered by solar panels and thus charges the connected battery. The intelligent charge control ensures efficient charging, minimizing charging time and charging the battery as gently as possible. It also protects against overcharging, thus ensuring a long battery lifespan. Further specifications: Capacity: 160 Ah (2112 Wh) Available capacity: 136 Ah (1900 Wh) Continuous output power (AC): 2300 W Peak output power (AC), 10 min: 3000 W Peak output power (AC), 10 s: 5000 W Continuous output discharge current (DC): 180 A Peak output discharge current (DC), 1 min: 350 A Maximum solar output power: 400 W Self-consumption (DC Out active): <1 W Protection class: IP21
