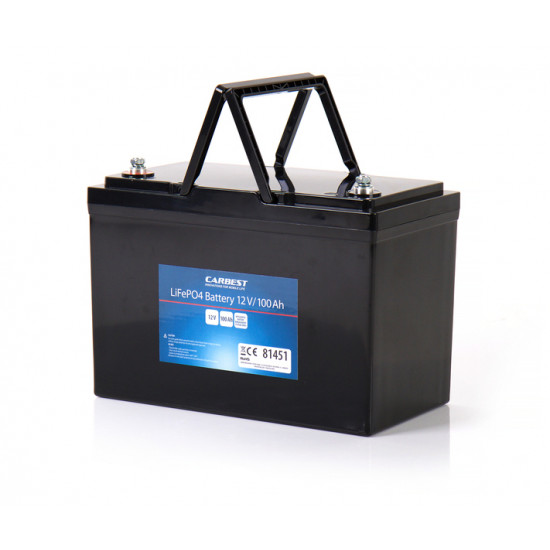

LiFePO4 battery Li100 - 100 Ah

Width: 172 mm
Weight: 12.5 kg
Height: 218 mm
Length: 307 mm
Voltage: 12 V
Capacity: 100 Ah

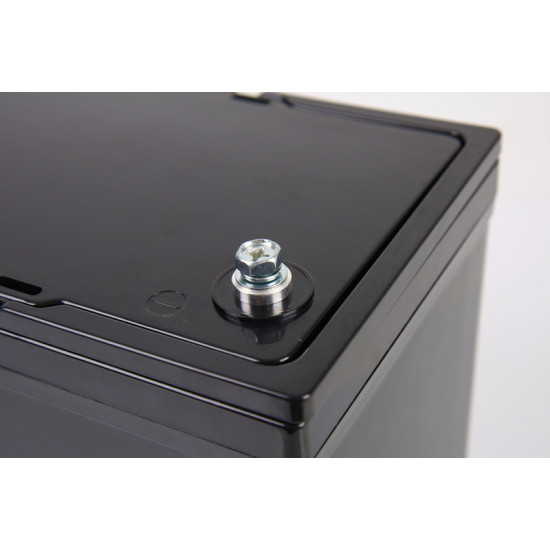

Connection: M8
Battery type: Lithium iron phosphate

• Compact dimensions for more flexible installation
• Low weight - therefore more payload possible
• Low self-discharge thanks to sleep mode when not in use
• Integrated BMS (Battery Management System)
• Layside installation possible
• Series connection possible: up to 4 batteries
• Parallel connection possible: up to 2 batteries
• With 2 integrated carrying handles

Compact lithium battery with a capacity of 100 Ah. Ideal replacement for heavy AGM batteries. The integrated BMS (Battery Management System) monitors battery functions internally and provides optimal battery protection. Up to 4 batteries can be connected in series or 2 in parallel. It features 2 integrated carrying handles.

Further specifications:

• Max. discharge current 100 A
• Max. discharge current 200 A (< 5 seconds)
• 24 h without charging/discharging Sleep mode
• Lifespan: 2000 to 5000 cycles
• Lateral installation possible
• Manufacturer's warranty: 7 years
