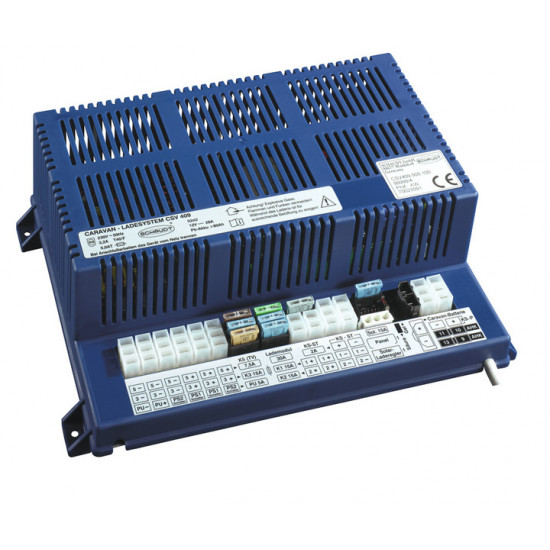

CSV 409 electrical block with charging module - For gel/lead-acid batteries

Width: 320 mm
Weight: 2 kg
Height: 111 mm
Length: 217 mm
Input voltage: 230 V
Battery type: Lead-acid / AGM / Gel
Output voltage: 12 V

• Bistable 12V main switching relay
• 8A charging booster for battery charging while driving
• Battery charging via 230V
• Suitable for 6-cell lead-acid and lead-gel batteries
• Connection for solar charge controller LR1218/RM1218
• Automatic disconnection of consumers when the ignition is switched on

The CSV 409 is designed for use in self-sufficient caravans. It contains a battery module, the complete 12V distribution system, the 12V circuit protection, and additional control and monitoring functions. In combination with the LT100 control panel, the CSV 409 is ideal for DIY installations or replacing third-party systems. If you want to convert an existing Schaudt system from a non-self-sufficient power supply to a self-sufficient power supply, manufacturer-specific Schaudt/Lippert devices may be required. To obtain the appropriate self-sufficient Schaudt/Lippert device for your vehicle, please contact your vehicle manufacturer or dealer.

Technical Data:

• Switch Mode Charge Controller
• IUoU Charging Curve suitable for lead-acid/gel batteries >80 Ah
• Temperature-protected, ventilated housing
