Power Control Jupiter 100 with Smart Shunt 100 A

Width: 200 mm
Weight: 200 g
Color: Metal
Height: 30 mm
Length: 65 mm
Voltage: 12 V
Current consumption: 0.3 A
Cable length: 5 m
Maximum current consumption: 2 A
Standby current: 0.06 A
Installation dimensions (length): 57 mm
Installation dimensions (width): 185 mm
Installation dimensions (height): 24 mm

• All information and functions in one device
• Simple, intuitive operation
• Information as numerical values and bar graphs

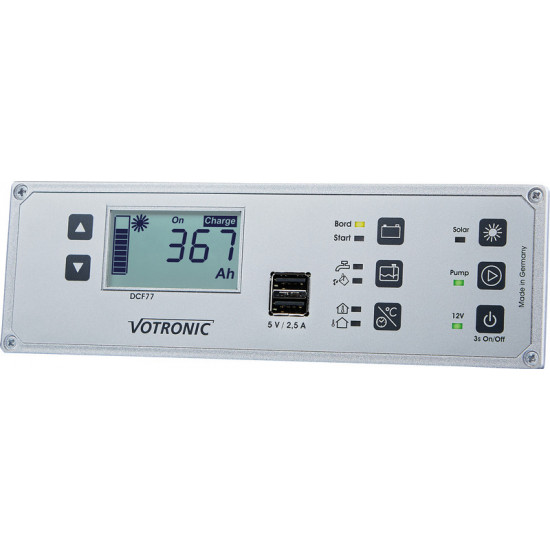

• Large, white backlit graphic display
• Compact, easy installation
• Shallow installation depth, low power consumption
• For 12 V-type on-board batteries

With full functionality of the LCD battery computer & solar computer, indoor and outdoor thermometer, clock, fresh and wastewater tank level indicators, pump master switch (up to 16 A) and main switch. Includes programmable deep discharge protection (% remaining capacity), with dual USB charging socket (5 V / 2.5 A)
