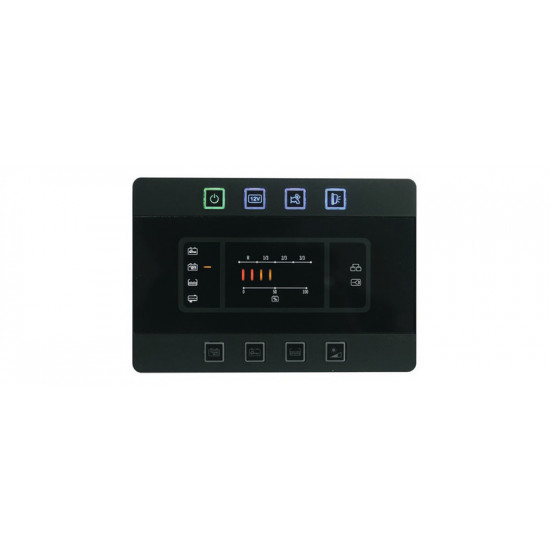

Flexible display and switching systems for 12 V electrical power supplies

Width: 190 mm
Weight: 2.3 kg
Color: Black
Length: 130 mm

• Various chargers can be connected
• Electronic detection of the D+ signal, integrated isolation relay
• 12 V main switch with control LED
• 9 fuse circuits, indicator for 230 V power supply
• Pump switch with relay and control LED
• Refrigerator switches off automatically when the vehicle is stationary
• Indicator for charging via alternator
• Modern in design & technology

Microprocessor-controlled complete system with LED control panel for monitoring the vehicle and auxiliary batteries (B1-B2), monitoring the fresh water tank, alarm when the waste water tank is full, pump, exterior light, relay for parallel connection of the batteries, refrigerator control, fuses, recharging of the Vehicle battery, monitoring and control of the battery protection system, twilight sensor. Control panel dimensions: 190 x 130 mm.
