Info Panel Pro 12V

Width: 200 mm
Weight: 90 g
Color: Metal
Height: 55 mm
Length: 18 mm
Voltage: 12 V
Current draw: 0.05 A
Maximum current draw: 0.12 A
Standby current: 0.001 A
Installation dimensions (length): 12 mm
Installation dimensions (width): 175 mm
Installation dimensions (height): 43 mm

• All information and functions in one device
• Simple, intuitive operation
• Information displayed as numerical values and bar graphs
• Large, white backlit graphic display
• Compact, easy installation
• Shallow installation depth, low power consumption
• For 12 V on-board batteries
• Extensive accessories Available

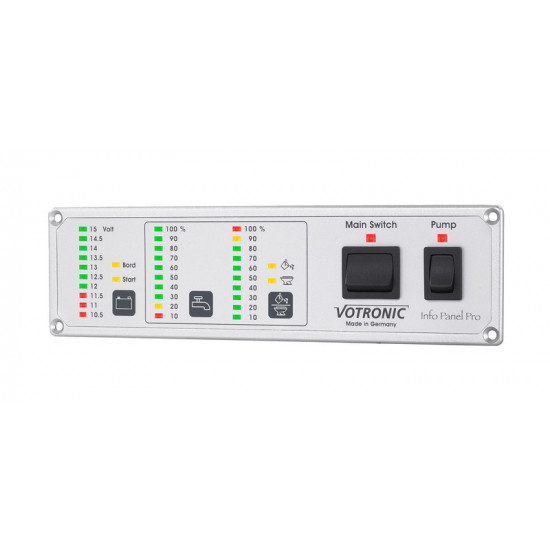

The panel monitors the fresh water, waste water, and sewage tanks, as well as the leisure and starter batteries. It features a main switch for the leisure battery and a pump main switch for the fresh water supply. The voltage display on the left side of the panel monitors the leisure and starter batteries. The dot-matrix display provides a fairly accurate reading of the battery voltages. A button press selects the leisure or starter battery voltage, or switches the display off. Red indicators signal low battery voltages, indicating that recharging is imminent. The tank levels are displayed using three-color LED bars. The displays are stepless. When filling or emptying the tanks, the continuously rising or falling indicator provides the user with a direct representation of the current fill level. The tank level indicator on the right side can be switched to two separate inputs (e.g., waste water and sewage tanks) as standard.
