Carbest LiFePO4 Battery Li100BH6 - Under-seat battery VW T6.1 / T6 / T5

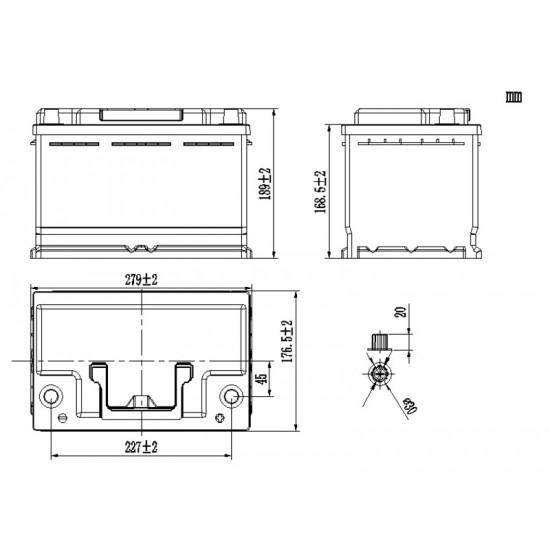

Width: 175 mm
Weight: 12.5 kg
Height: 190 mm
Length: 278 mm
Voltage: 12 V
Capacity: 100 Ah

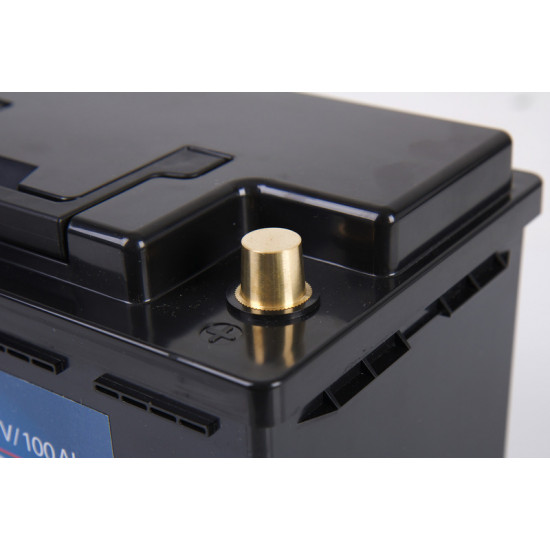

Connection: Standard automotive terminal clamp
Battery type: Lithium iron phosphate

• Compact DIN H6 housing - fits under the front seat of VW T6.1 / T6 / T5
• Low weight - increased payload capacity
• Low self-discharge thanks to sleep mode when not in use
• Integrated BMS (Battery Management System)
• Integrated heating function for effective charging even at sub-zero temperatures
• Bluetooth function, free CARBEST app
• Series and parallel connection possible
• Horizontal installation Possible

100 Ah lithium battery in a DIN H6 housing with Bluetooth technology and heating function. Special dimensions for installation under the driver's seat in the VW T6.1/T6/T5. Ideal replacement for heavy AGM batteries. The integrated BMS (Battery Management System) monitors battery functions internally and provides optimal battery protection. The integrated heating element operates fully automatically. If an ambient temperature below 0 °C is measured during charging, the BMS immediately stops the battery charging process and simultaneously activates the battery heating function. Once +5 °C is reached, the charging process resumes automatically. If the temperature rises above +10 °C, the heating function is deactivated again. The state of charge and battery capacity are always under control via smartphone and the free CARBEST app. Up to 4 batteries can be connected in series or 2 batteries in parallel. It features one integrated carrying handle.

Further specifications:

• Max. discharge current: 100 A
• Max. discharge current (short-term): 350 A (< 3 seconds)
• Sleep mode activated after 24 hours without charging/discharging
• Lifespan: 2000 to 5000 cycles
• Layover installation possible
• Manufacturer's warranty: 7 years
