Cara-Move - powerful, semi-automatic shunting system

More powerful due to weight savings
Features corrosion protection
High traction with cast aluminum drive rollers
Integrated soft start technology
Convenient control with remote control
3 years warranty
Soft start precision control

✓ Jauna prece

Pārtulkot produkta aprakstu uz

Apraksts

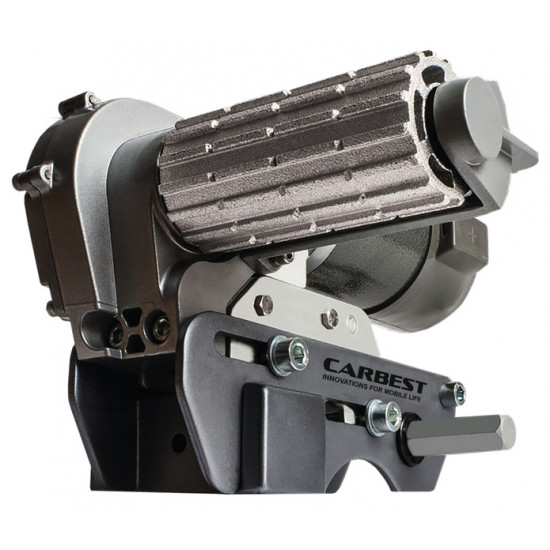

Carbest Cara-Move maneuvering aid for caravans with remote control. The manual caravan maneuvering aid moves single and double axles up to a maximum total weight of 2250 kg. The rollers are swiveled on and off manually. Power consumption on level ground: approx. 25 A. Max. Current consumption (1100 kg Wohnwaen single-axle, slope 25%): 80 A.

Max. Climbing capacity by total weight:

15% - 2500 kg
20% - 2250 kg
25% - 2000 kg

Scope of delivery:

1 Engine unit (A)
1 Engine unit (B)
1 Main cross member
1 Cross bar center bar
2 Cross bar insert bars
1 Coupling tool
4 Clamp - stop nut and bolt
2 Clamp - Upper plate
2 Clamp - U-plate
2 Clamp -. Lower plate
1 Sinuous cable channels
2 Positive (+) red motor cable
2 Negative (-) black motor cable
1 Positive (+) red battery cable
1 Negative (-) black battery cable
8 clamp - M10x55 mm screw
8 clamp - M10 Nyloc nut
8 clamp - Ø 10 mm washer
20 M4x15mm P-clip screw
10 cable P-clips 19.2 mm
10 cable P-clips 10.4 mm
4 Battery clip connector Ø 8 mm
4 Clamp ring connector Ø 6 mm
4 Clamp ring connector Ø 4 mm
3 Cable number markers (1,2,3,4)
3 Cable polarity markers (+,-)
4 Cable tie motor unit 8x400
10 Cable tie 2x70 mm
1 Power disconnect switch (incl. Key and fasteners)
2 20 mm roller spacers

Pivot on/off:	Semi-automatic
Single axle/tandem axle:	Single-axle
Max. Caravan weight:	2500 kg
Gradeability:	15% (at 2500 kg) / 20% (at 2250 kg) / 25% (at 2000 kg)
Speed approx.:	12 cm/Sek.
Current consumption max.:	80 A
Current consumption:	25 A
Weight:	35 kg

Atlikums Rīgas noliktavā: Ir piegādātāja noliktavā
Model: Camper
MPN: 920208
